Handheld Vibration Calibrator , Self-contained Vibration Analyzer

Name: Handheld Vibration Calibrator , Self-contained Vibration Analyzer
Brand: HUATEC GROUP CORPORATION
SKU: HG5000
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG5000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                portable vibration meter, digital vibration meter


Operating Frequency:	159.2 Hz ± 0.5 %	Type:	Handheld
Acceleration Output:	10 M/s² (RMS) ± 3%	Maximum Load:	150g

Operating Frequency:	159.2 Hz ± 0.5 %
Type:	Handheld
Acceleration Output:	10 M/s² (RMS) ± 3%
Maximum Load:	150g

Product Description

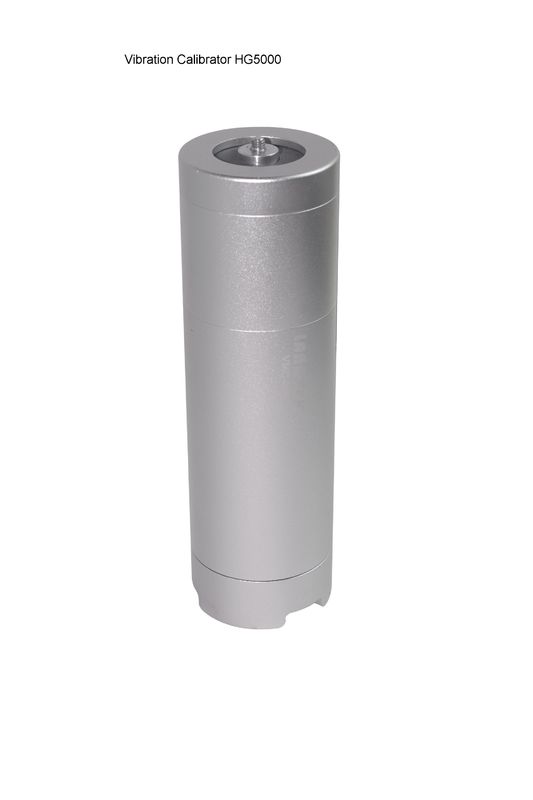

Handheld Vibration Calibrator , Self-contained Vibration Analyzer

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy check-ing of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.

*Operates at 159.2 Hz.

*10 mm/s RMS velocity output.

*Drives vibration sensors up to 150g.

*CE compliant.

Operating Frequency	159.2 Hz ± 0.5 %
Acceleration Output	10 m/s² (RMS) ± 3%
Velocity Output	10 mm/s (RMS) ± 3%
Displacement Output	10 um (RMS) ± 3%
Transverse Output	< 5%
Distortion	< 3%
Maximum Load	150 g
Ramp-Up Time	< 3 Seconds
Operating Conditions	Temperature: -10~40°C Humidity : < 85 %RH
Internal Battery	1x9V 6F22
Size (Diameter x Height)	56 mm x 200 mm
Weight (with batteries)	900 g

Standard Accessories:

1. Vibration Calibrator Main Unit

2. Carrying Case

3. Manual Book

Handheld Vibration Calibrator , Self-contained Vibration Analyzer 0
