Digital Magnetic Field Strength Meter Hall Effect Tesla Meter, Magnetic Field Intensity Meter

Introduction

The Tesla meter is a special instrument used for inspecting & checking flux density, which is also one of the most universally devices in the field of magnetic measurement.

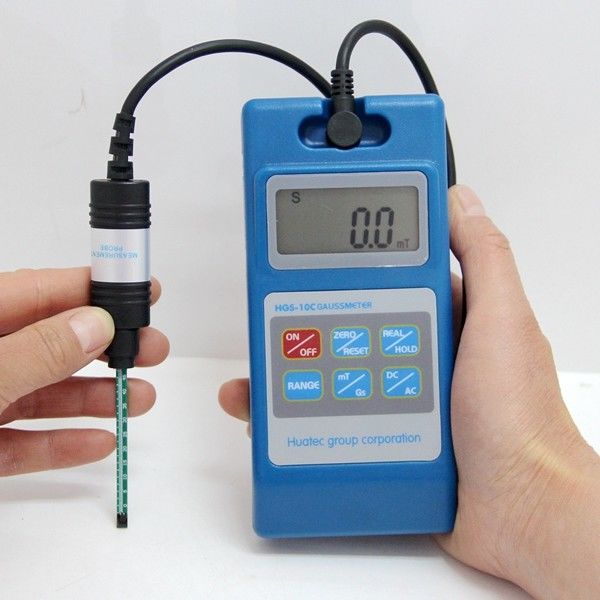

Model HGS10C digital Tesla meter is controlled by the SCM, which is suitable for handle operation. It can be used to measure DC or AC magnetic field and flux dencity.The device can be carried on one’s person. It is characterized by its wide measuring range, simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chose, and others that as resetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.

Application

1. Magnetic field distribution of material surface
2. Working magnetic field produced fro some instrument that as iron-removing device,magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
3. Leakage Magnetic iron-surface

Main Technical Parameters

Rang: 0~200mT~2000mT

Operation request:

1. Magnetic field distribution of material surface
2. Working magnetic field produced fro some instrument that as iron-removing device,magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
3. Leakage Magnetic iron-surface
4. Do not use the instrument in unappropriate conditions.

5. If you find the value of testing were error in the status ofmeasurement,

   you could loosened the handle of the probe to adjust the screw of the resistance tinily.

6. If don’t ensure that the instrument is operated correctly described below, there would be error or mistake

7. Don’t attempt to repair, or disassemble, and any reconstruct this instrument.

8. Use only recommended power accessories.
9. Don’t connect the terminals of the outer power supply reversely. the inner is plus, the outer is minus.
10. Don’t drop this instrument or the probe down ground. It’ll be damaged by strong vibration.
11. Do not allow hands or other objects with dirt to touch the probe.
12. Avoid using, placing or storing the instrument in places subject to strong sunlight or high temperature, so as to humidity, water, oil, rust air, vibration and others.
