1000 Data Memory Ultrasonic Velocity Meter Ultrasonic Thickness Measurement Equipment

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG-1000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                portable ultrasonic thickness gauge, through coating thickness gauge


Model:	TG-1000	Display:	FSTN LCD Display With Backlight
Power Supply:	3.7V Li-Ion Chargeable Battery	Measuring Range:	0.50mm To 508mm(0.02" To 20.00")
Size:	157mm78mm37mm	Weight:	250g
Probe Calibration:	Real-time Temperature Compensation Technic Supporting One-time Probe Calibration For Long Term Usage	Gain:	16 Stages Gain Adjustable
Memory:	1000 Datas	Sould Velocity:	1 ~ 19999 M/s

Model:	TG-1000
Display:	FSTN LCD Display With Backlight
Power Supply:	3.7V Li-Ion Chargeable Battery
Measuring Range:	0.50mm To 508mm(0.02" To 20.00")
Size:	157mm78mm37mm
Weight:	250g
Probe Calibration:	Real-time Temperature Compensation Technic Supporting One-time Probe Calibration For Long Term Usage
Gain:	16 Stages Gain Adjustable
Memory:	1000 Datas
Sould Velocity:	1 ~ 19999 M/s

Product Description

Portable Ultrasonic Velocity Gauge Ultrasonic Thickness Measurement Equipment Spheroidization rate tester

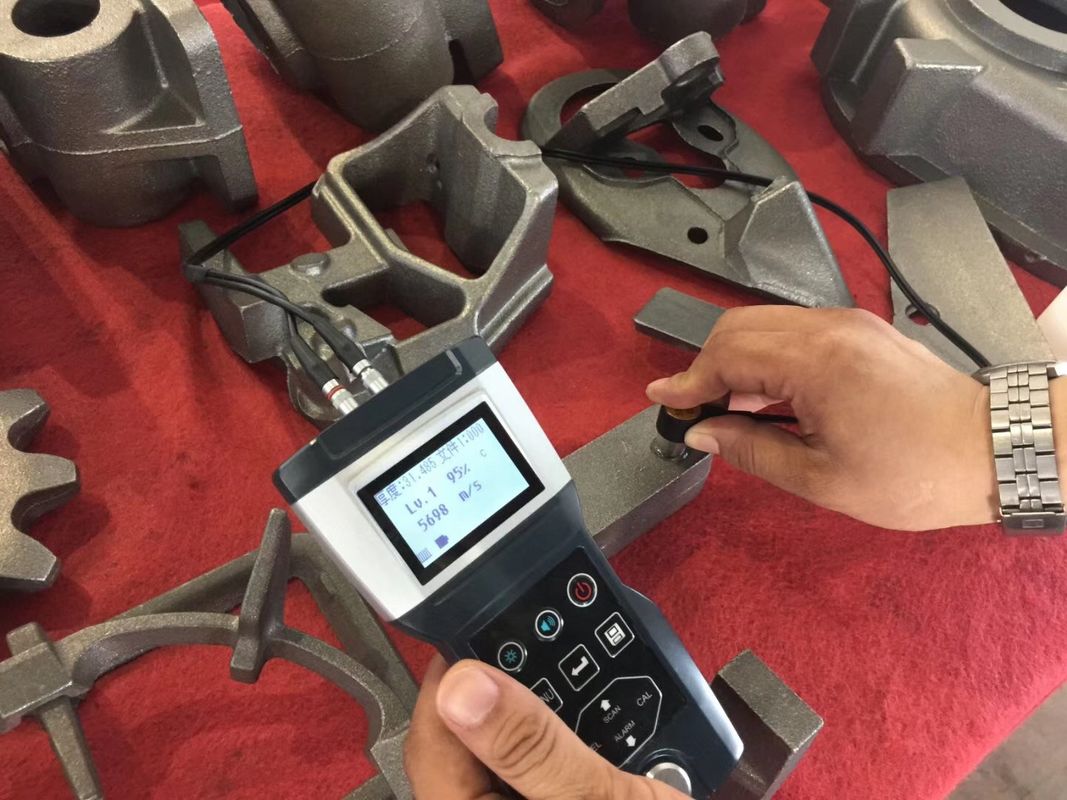

TG-1000 is a portable ultrasonic velocity gauge,Spheroidization rate tester. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.

Features:

High precision timing chip & V-Path model used for precision measurement
Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
Velocity can be directly measured and used in evaluation of spheroidization rate
Bluetooth & Mini-USB interface for printing & communication, host software upgradable

Main Functions:

Scan mode, min/max capture mode, and alarm mode support
Thickness can be measured by a known velocity
16 stages gain adjustable
Storage capacity of 1000 measurements with velocity, thickness, time, etc.
Communicate with PC or smart phones

Technical Parameters

Sound Velocity Range	1 ~ 19999 m/s	Thickness Range	See Probe Parameters
Resolution	1m/s, 0.001mm / 0.0001inches	Accuracy	See Probe Parameters
Measuring Period	4 times per second	Probe Frequency	2MHz,3MHz,5MHz,7.5MHz
Calibration Mode	Probe Calibration, Real-time Temperature Compensation	Data Storage	1000 measurements, including thickness, sound velocity, time, etc.
Calibration block	4.000mm(Steel)	Gain Adjustable	16 Stages
Measuring Mode	scan, min/max capture, alarm	Thickness measure	Support
Display	English FSTN LCD Display with backlight	Display Content	Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc.
Communication	Bluetooth & Mini-USB interface, virtual serial port protocol	Print	Optional portable Bluetooth thermal printers
Power Supply	3.7V Li-Ion chargeable battery	Power off	Timeout power off, low battery power off
Usage Temperature	-10 ~ 50 °C	Storage Temperature	-30 ~ 60 °C
Size	157mm78mm37mm	Weight	About 260g
Shell Material	ABS & PC alloy	Box Material	ABS (IK08 / IP67)

Probe parameters

Label	5M Φ10	5M PT-08	7.5M PT-06	2M ZT-12	3M GT-12
Measure Range (Steel)	0.75~300 mm	0.8~225 mm	0.8~50 mm	3.0~400 mm	2.0~200 mm
Min. Measure Diameter	Ø25 x 3 mm	Ø20 x 1.2 mm	Ø15 x 1.2 mm	Ø30 x 4 mm	Ø25 x 3 mm
Probe Diameter	13mm	11mm	9mm	17mm	15mm
Probe Frequency	5MHz	5MHz	7.5MHz	2MHz	3MHz
Contact Temperature	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~310°C

Version Comparison

Version	Online measurement	Command control
TG-1000	x	x
TG-1000C	√	√
