Product Description

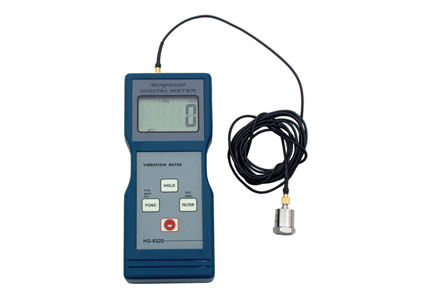

Multi-function Vibration Tester 10Hz - 1KHz With Low Battery Indicator
Specifications:
Acceleration 10Hz to 1KHz 10Hz to 10KHz 0.1-200m/s
Velocity 10Hz to 1KHz 0.1-200mm/s ture RPM
Displacement 10Hz to 1KHz] 0.001-2.0mm
Accuracy:＜5﹪
Auto power off
Max hold
Operating conditions:0-+40℃(32℉-104℉), ≤90%RH
Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Dimensions : 160x68x32mm
Weight: 181g(not including battery)
| Standard Accessories | Main Unit |
| Piezoelectric Transducer | |
| Powerful Rare Earth Magnet | |
| Probe(Cone)&Probe(Spherical) | |
| Carrying Case(B04) | |
| Manual Book | |
| Optional Accessories | Headset |
| RS-232C/USB data Cable with Software | |
| Bluetooth Data Adapter with Software |
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
