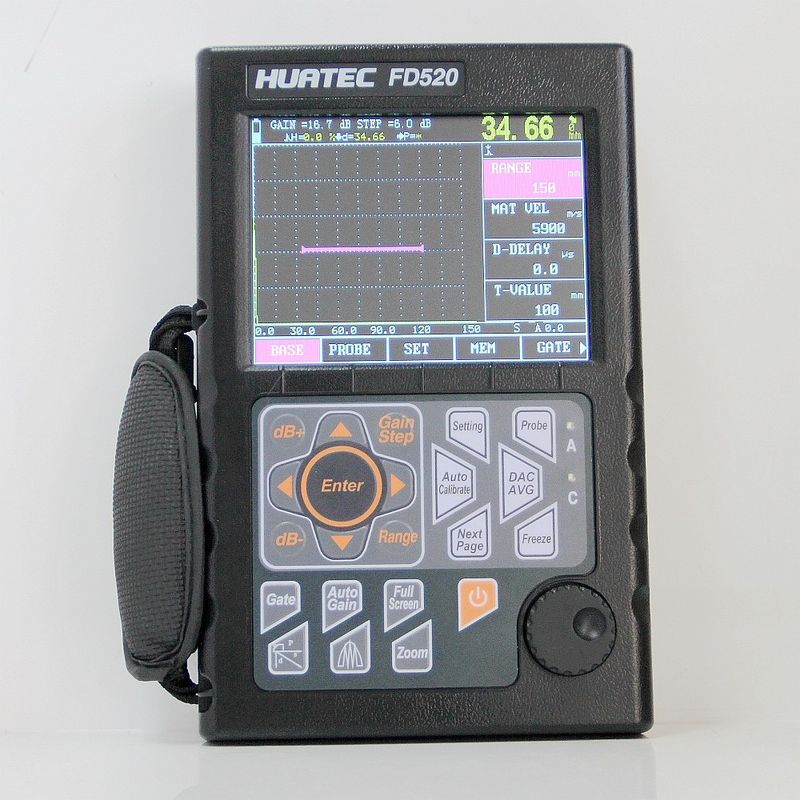

FD520 digital ultrasonic flaw detector , ultrasonic flaw detection equipment dust proof

Main features:

★ Automated calibration,Automated gain, 0-120dB gain

★  DAC,AVG,TCG,B scan,AWS

★  High-speed capture and very low noise

★  Solid metal housing,water / oil proof,dust proof

★  high contrast viewing of the waveform from bright

★  Powerful pc software and reports can be export to excel

• Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
• Automated switch three staff gauge ((Depth d,level  p,distance s)；
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
• Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
• 6dB DAC functions;
• 500 independence setup, any criterion can be input freely, we can work in the scene without test block；
• Big memory of 1000 A graph
• Automated gain and gain scan;
• Peak Hold and Peak Memory；
• B scan;
• AWS D1.1
• Automated make video of test process and play; use upan,the length of video is unlimited.
• Powerful pc software and reports can be export to excel;
• Li battery, continue working time up to 12 hours;
• The embeded software can be online updated；

• Other assistant function

  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • Gate and DAC alarm;

• Standard Delivery:

  Main unit

  2.5MHZ-ф20 straight probe

  4MHZ-8x9mm, 60degree angle probe

  4A/9Vpower adapter

  Probe connection cable (BNC to BNC)

  Probe connection cable (BNC to Lemo 00)

  Instruction manual

  Carrying case

  RS232-USB converter



  Additional Accessories:

  Data managing software

  Data managing cables RS232

  Straight probe (5MHZ-ф20)

  Straight probe (2.5MHZ-ф20)

  Straight probe (2.25MHZ-ф20)

  Straight probe (1MHZ-ф20)

  Angle probe (4MHZ-45degree, 8*9mm)

  Angle probe (4MHZ-60degree, 8*9mm)

  Angle probe (4MHZ-70degree, 8*9mm)

  Angle probe (4MHZ-80degree, 8*9mm)

  Angle probe (2MHZ-45degree, 8*9mm)

  Angle probe (2MHZ-60degree, 8*9mm)

  Angle probe (2MHZ-70degree, 8*9mm)

  Angle probe (2MHZ-80degree, 8*9mm)

  Probe T/R (5MHz-ф20mm, focus 15mm)

  Probe T/R (2.5MHz-ф20mm, focus 15mm)

  Connection cable to probe (BNC-BNC)

  Connection cable to probe (BNC-Lemo 00)

  Connection cable to probe (BNC-Lemo 01)

  Connection cable to probe (Lemo 00-Lemo 01)

  Lithium ion battery

  Power adapter (4A/9V)

  Power Cable

  Leather case

• Comparison sheet

•

• Title	FD510	FD520	FD550
  Measuring Range	0-6000mm	0-10000mm	0-10000mm
  Material Velocity(m/s)	1000-15000	1000-15000	1000-15000
  Gain(dB)	110dB	120dB	130dB
  Frequency Range(MHz)	0.5-15M	0.5-15M	0.5-20M
  Memory	500	1000	1000
  independence setup	100	500	500
  sz dB,ф	★	★	★
  Peak Hold and Peak Memory	★	★	★
  B scan	X	★	★
  DAC	★	★	★
  AVG	★	★	★
  TCG	X	★	★
  STANDARD(13 standards in-built)	★	★	★
  Automated calibration( IIW )	★	★	★
  Automated calibration(two hole )	X	X	★
  6dB DAC	X	★	★
  make video	★	unlimited	unlimited
  pc software	★	★	★
  updated online	★	★	★
  curved surface correction	★	★	★
  AWS	★	★	★
  Pulse energy	★	★	★
  Pulse width	★	★	★
  Gate alarm	★	★	★
  DAC alarm	★	★	★
  continue working time	9 hours	12 hours	12 hours
  Port Type	BNC	BNC	BNC
  Overall dimension (mm)	238×160×48	238×160×48	238×160×48
  Weight (kg)	1.0	1.0	1.0
