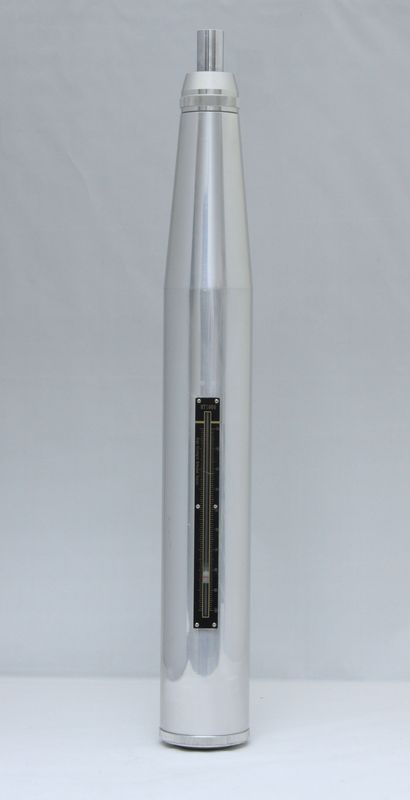

USB Concrete Test Hammer

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HTH-1000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price
Product Details
Highlight:

hammer testing concrete

,

digital concrete test hammer

Test Range::
50~80Mpa
Standard Impact Energy::
9.8J
Interface:
USB Communication Port
Stiffness Of Tension Spring::
10N/cm
Friction Of Pointer Slider::
0.4N~0.8N
Weight::
≈3.5KG
Test Range::
50~80Mpa
Standard Impact Energy::
9.8J
Interface:
USB Communication Port
Stiffness Of Tension Spring::
10N/cm
Friction Of Pointer Slider::
0.4N~0.8N
Weight::
≈3.5KG
Product Description



Hammer Test For Concrete





Test range: 50~80Mpa

Standard impact energy:9.8J

test hardness and strength

USB communication port



Brief introduction:

Submit to JGJ/T23-2001 technology regulation. The instrument is suitable for testing strength of tall building structure, bridge and concrete component etc.



Trait:

1)Center rod use imported material, high precision and wear proof:

2)Shell use super hard aluminums, protect instrument from damage on site work and prolong use life;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price.



Parameter:

Test range: 50~80Mpa

Standard impact energy:9.8J

Stroke of rebound hammer: 140mm

Friction of pointer slider: 0.4N~0.8N

Average rebound value on steel anvil: 83±2

Stiffness of tension spring: 10N/cm

Size: Φ65*486mm

Weight: ≈3.5KG
