1.Product name:Surface Roughness Profiler Integrated Machine

2.Product model:SRT-7150, Brand: HUATEC

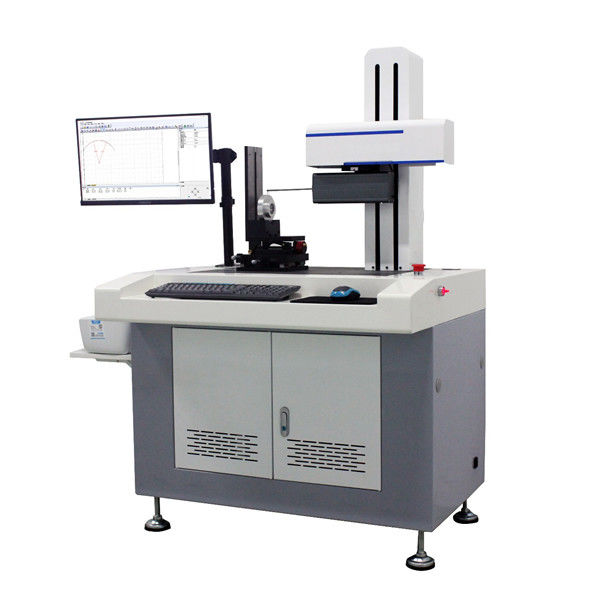

3. Product photo

4.Key advantages

• Dedicated to precision measurement for decades!
• Through ISO9001 quality management system certification, knowledge management system certification;
• National intellectual property advantage enterprise certification;

• Through the export of EU CE certification;

• Product diversification: Support customer customization;

5. Instrument description and measurement range:

# SRT-7150 is an integrated measuring machine equipment for surface roughness and contour measurement.

# The surface roughness and profile of various workpieces are measured and analyzed by using high precision grating measurement system, high precision grinding guide rail, high performance non-contact linear motor, high performance roughness measurement module, high performance computer control system technology and perfect multi-functional software.

# The device can measure various parameters of various mechanical parts, such as plain line and cross section profile parameters, surface waviness parameters, roughness parameters and so on.

# It can measure the straightness, inclination, angle processing, circle processing ( distance from straight line to tangent line, distance from circle center to circle center, radius of arc, distance from intersection point to circle center, distance from circle center to straight line ), point line processing ( distance from intersection point to straight line, distance from intersection point to circle center, intersection point of two straight lines, distance from intersection point to intersection point ), logarithmic curve, groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters of various parts.

# It is suitable for bearing industry, mechanical processing, automobile, motorcycle, precision hardware, precision tools, molds, tools, optical components and other industries.

6.Application cases:

7.Product technical characteristics:

(1)High precision, high stability, high repeatability, long service life;

1. The leading high-precision grating measurement system and high-precision inductance measurement system are selected, and the measurement accuracy is very high.
2. Independent research and development of high precision grinding guide rail system, guide rail material wear resistance is good, ensure the system stable and reliable work ;
3. High performance linear motor drive system ensures high measurement stability and good repeatability.

4. The measuring table can adjust the Y direction, horizontal direction, horizontal sector direction and various angles, and can adjust various angles, which is greatly convenient for user measurement requirements

(2) Intelligent software system:

The instrument operation interface is friendly, the operator can easily master the instrument operation, and the use is very simple.

1 ) The practical measurement software design experience accumulated by the company for many years provides customers with a simple, practical and fast operation experience ;

2 ) Powerful, automatic processing of data, print reports of various formats, automatic display, print, save, query measurement records ; the data can be archived or printed centrally without occupying the verification operation time.

3 ) The measurement range is wide, which can meet the special measurement function of almost all types of workpiece contour measurement, including special workpiece screw, bearing, thread and so on.

4 ) The measured section can be selected automatically and manually for evaluation, and the software function can be customized according to customer requirements ;

5 ) Using computer large capacity database storage, can record all the verification results.

8.Environmental requirements for use:

• Power demand : about 500W
• AC Power: 220V ± 10 %, 50Hz
• Environmental requirements : temperature - 10 ~ 30 °C ;
• Relative humidity : < 85 %
• There is no obvious vibration source at the installation site
• Individual ground wire
• There should be no dust, vibration, noise, air flow, corrosive gas and strong magnetic field around the room that may affect the measurement. Maximum ground vibration RMS: < 50HZ 2.5μm/s > 50HZ 5.0μm/s

9.Technical parameters:

Note: The above technical parameters can be adjusted according to the actual needs of users. You are welcome to consult our technicians on various issues.

10.Equipment size:

12. Optional configuration

1,Different specifications and test needles

2. Multi-direction and multi-force working platform

Two-axis platform: rotation and yaw;

Z-axis rotation: 360 °, minimum subdivision is 1 ', with locking function;

Y-axis tilt: Y-axis deflection, measuring range 45 °, minimum subdivision 0.1 °;

Opening of flat pliers: 85 mm;

Overall size of the bench (length x width x height): 170X170X160mm;

Total weight: 14KG; Maximum load: 20KG

3,Multi-function V block

Size: 75 * 35 * 24mm;

Remarks: used for positioning small shaft parts,

with clamping function

4,Multifunctional fixture

13. Delivery and acceptance

1, Delivery

1. Delivery date: within 15 working days after the contract comes into effect.
2. Delivery place: free express to the delivery place designated by the demander

2, Installation and training

1. Our company is responsible for the installation and commissioning of equipment on the user's site;
2. During the installation and commissioning of the equipment, the Buyer's technical personnel shall be trained in theory, practical operation and maintenance, so that the user's technical personnel can master the operation of the equipment, be skilled in using the equipment for verification, ensure the normal operation of the equipment and be able to eliminate the general faults and special maintenance of the equipment.

3, Check before acceptance

1. Acceptance standard: subject to the current national verification regulations and contract technical agreement

2. Acceptance items: check that the quantity and specification of the main machine, accessories and tools of the equipment should meet the requirements of the contract technical agreement and the equipment manual; Check whether the operation instructions and other data of the equipment are complete and meet the requirements of the technical agreement.
3. In the process of contract acceptance and contract execution, if there are any missing items and shortages that affect the performance of the equipment, such as equipment accessories, technical data, user manuals, special tools, spare parts, services and technical guidance, our company is responsible for making up the missing items and shortages free of charge.
4. After acceptance, both parties shall sign the Product Acceptance Report.
