Home > products > Magnetic Particle Testing > Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp
Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp
Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp
Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp

Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: DG-4020

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

astm e3022 magnetic flaw detector

,

ac dc magnetic flaw detector

,

ultraviolet lamp magnetic particle flaw detector

Material:
Aluminum Alloy And ABS
Meet Standards:
ASTM E3022
UV-B Content:
Zero
Battery:
Quick Battery Replacement
Temperature Rise Of External Surface Under Continuous Operation:
< 8K (8℃)
AC&DC:
Can Work With AC Directly And Also With DC Battery
UV(Light)-FLUX Indoor Temperature 25℃:
6000uW/cm2
White Light Content:
3LUX
Irradiation Area At Depth Of 380mm: (≥1000uw/cm²):
Φ300mm
Flux Error:
0-40℃ ±10%
Power Supply:
AC100- 240V，50/60Hz
Size:
157. 5mm (W) *76mm (D) *177mm (H)
Weight:
560g Including Battery
Product Name:
UV Light
Material:
Aluminum Alloy And ABS
Meet Standards:
ASTM E3022
UV-B Content:
Zero
Battery:
Quick Battery Replacement
Temperature Rise Of External Surface Under Continuous Operation:
< 8K (8℃)
AC&DC:
Can Work With AC Directly And Also With DC Battery
UV(Light)-FLUX Indoor Temperature 25℃:
6000uW/cm2
White Light Content:
3LUX
Irradiation Area At Depth Of 380mm: (≥1000uw/cm²):
Φ300mm
Flux Error:
0-40℃ ±10%
Power Supply:
AC100- 240V，50/60Hz
Size:
157. 5mm (W) *76mm (D) *177mm (H)
Weight:
560g Including Battery
Product Name:
UV Light
Product Description

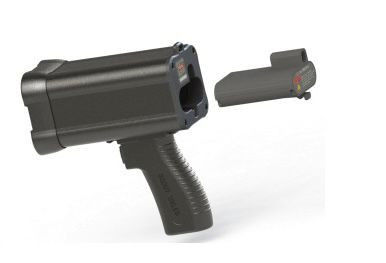

ASTM E3022 AC&DC Dual Operation Handheld Ultraviolet Lamp Magnetic Flaw Detector



Feature:

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery



Dimension: (mm)

Astm E3022 Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp 0



Parameters:

Project Parameter / mode
Style Handheld

UV(Light)-FLUX

Indoor temperature 25℃

 6000uW/cm2
White light content ≤3LUX

Irradiation area at depth of 380mm:

(≥1000uw/cm²)

 Φ300mm
Flux error 0-40℃ ±10%
Light distribution characteristics Central light distribution
Power Supply AC100- 240V,50/60Hz
Power UV LED-12VA
Wavelength Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension 157. 5mm (W) *76mm (D) *177mm (H)
Weight 560g including battery
Battery capacity 2200mA/H 12.6V
Charging time 2-3H
Battery life (cumulative time) UV LED 2-3H
