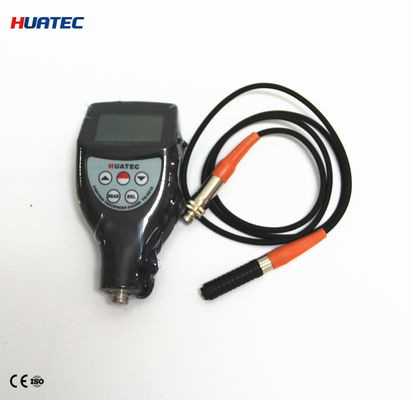

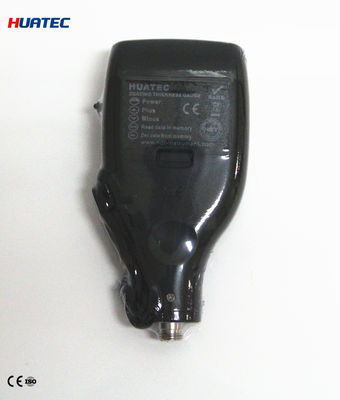

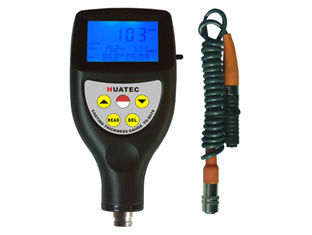

4 Digits LCD digital Paint Thickness Gauge TG-8010 For Coating Inspection, Paint Inspection

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number TG8010
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

digital thickness gauge

,

coating thickness meter

Leave a Message
Product Description

Coating thickness gauge TG-8010(film thickness gauge, paint thickness gauge, coating inspection, paint inspection,  paint thickness, thickness gauge, coating thickness, NDT Instruments)



1.Features

* Coating thickness gauge TG-8010 meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some

alloy tile, paper etc.

* The N probes measure the thickness of non-magneticcoatingsonnon magneticmetals.Itisusedon anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.



2.Specifications

Display: 4 digits LCD, backlit

Range: 0~1250 μm/0~50mil

(other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 μm (0~99.9μm);

1 μm (over 100μm)

Accuracy: ±1~3%n or 2.5 μm or 0.1mil

(Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C interface

Power supply: 2x1.5 AAA(UM-4) battery

Operating condition: Temp. 0~50℃.

Humidity <95% .

Size: 126x65x35 mm;  5.0x2.6x1.6 inch

Weight: about 81g(not including batteries)

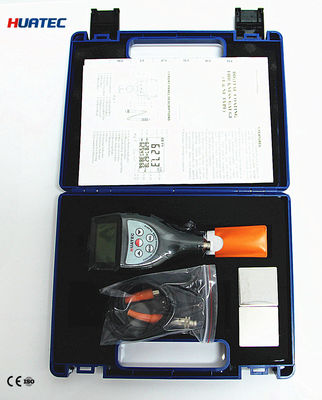

Standard delivery of Coating thickness gauge TG-8010:

Carrying case ...................1 pc.

Operation manual ............ 1 pc.

F probe in built .................1 pc.

NF probe in built...............1 pc.

Calibration foils ..............1set.

Substrate (Iron) ................1 pc.

Substrate (Aluminium)......1 pc.



Optional accessories:

1.RS-232C cable & software:

2.USB adaptor for RS-232C
3.Bluetooth  interface
