Home > products > Magnetic Particle Testing > 360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W

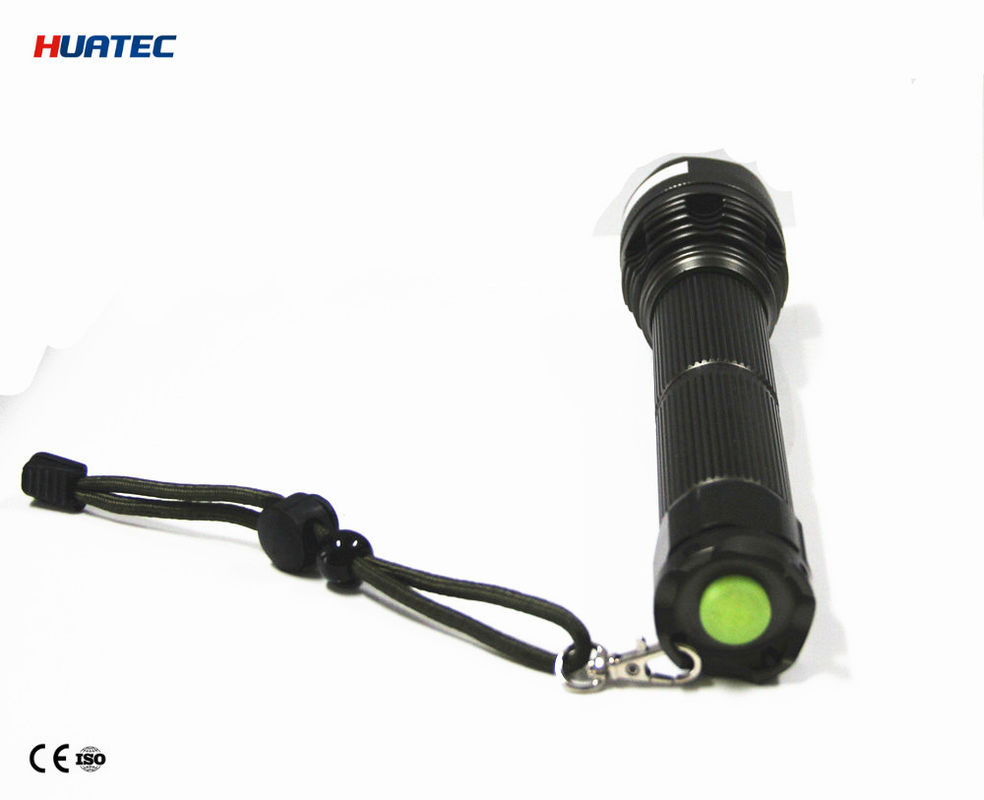

360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W

Name: 360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W
Brand: HUATEC GROUP CORPORATION
SKU: DG-3W
Price: 15,010.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: DG-3W

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                magnetic flaw detector, magnetic strenght meter


Color:

Black

Color:

Black

Product Description

360g Handheld Ultraviolet LED UV Torch Light DG - 3W long source life

UV LIGHT Magnetic Strength Meter Lightweight Portable

Handheld Ultraviolet Lamp Magnetic Flaw Detector Testing LED UV Torch Light DG-3W

Characteristic

Irradiance Spotlight type>10000uw/cm2

Astigmic type>2500uw/cm2

Light source life: 30000H

Feature:

3AV power saving of power consumption

30000H life expectancy of light source

Imported light source UVLED

0 UV-B contained

Battery endurance 8hrs

Pre-alert and protection of low power

Weight 360g only including batteries

Build in battery,no wiring outside

three minute delay(power saving)//constand lighting,mode can be switched

continuous operation and external surface temperature rises less than 5 celsius

No need to preheat,instant to reach 100% power

UV irradiance intensity distribution diagram (380mm)

360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W 0

Dimension: (mm)

360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W 1

Technical Parameters

Itme	parameter
Style	torch style
UV(Light)-FLUX Indoor temperature 25℃	Spotlight type>10000uw/cm2 Astigmic type>2500uw/cm2
FLUX error	0-40℃ ±10%
Grading feature	Centre grading
Power supply	AC100-240V 50/60Hz
power	UV LED-3VA
wave length	Indoor temperature 25℃ 365nm±3nm(UVA)
Outline dimension	47mm*225mm
battery voltage	3.7V*2
Charging time	2-3H
Battery cumulative time	UV LED about 8H

360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W 2

Standard accessories:

1.Main unit 1pc

2.Carrying case 1pc

3.Calibration certificate 1pc

4.Manual 1pc
