Digital ultrasonic flaw detector FD201B, ultrasonic detector , NDT, UT, ndt test
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | digital ultrasonic flaw detector,ultrasonic flaw detection |
||
|---|---|---|---|
Product Description

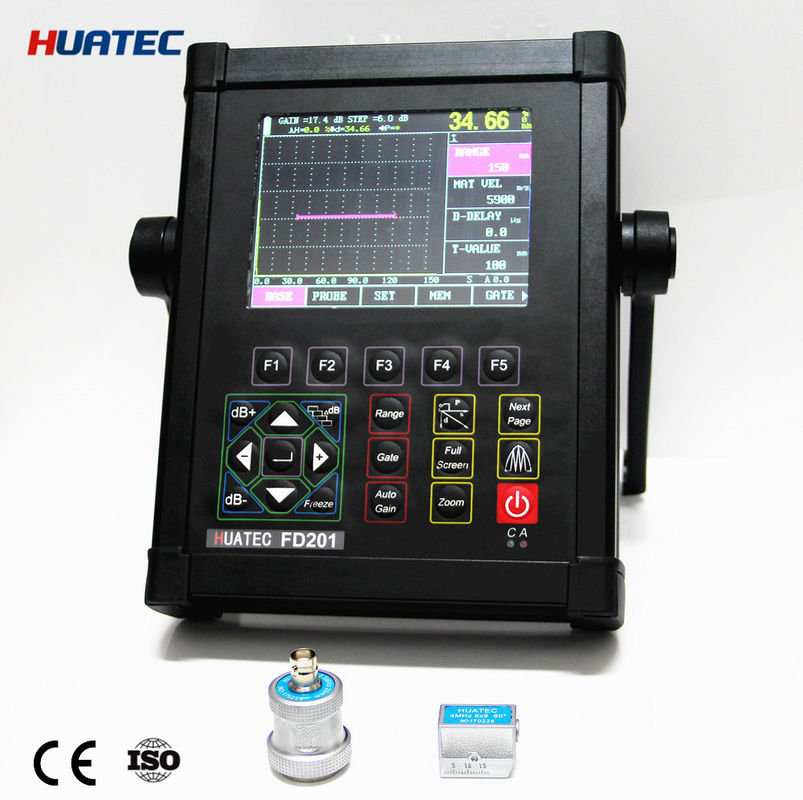

Digital ultrasonic flaw detector FD201B, ultrasonic detector, NDT, UT, ndt test
Features for digital ultrasonic flaw detector FD201B:
DAC, AVG curves
AWS function
High-speed capture and very low noise
Gate and DAC alarm;Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
- Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
- Automated switch three staff gauge ((Depth d, level p, distance s)
- Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
- Ten independence setup, any criterion can be input freely, we can work in the scene without test block
- Big memory of 300 A graph and 30000 thickness value
- Automated gain and gain scan, automated echo degree
- Peak hold and Peak memory
- Powerful PC software and reports can be export to excel
- RS232/USB
- The embeded software can be online updated
- Li battery, continue working time up to 10 hours
- Display freeze
- Lock and unlock function of system parameters
- Dormancy and screen savers
- Electronic clock calendar
- Two gates setting and alarm indication
Specifications
|
Title |
Parameter |
Title |
Parameter |
|
Measuring Range(mm) |
2.5 ～ 5000 |
Measurement Mode |
Single, Dual, Thru |
|
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
|
Horizontal Linearity Error |
≤0.2% |
Pulse Displacement(μs) |
-20 ～ +3400 |
|
Sensitivity Leavings |
＞60dB |
Zero(μs) |
0.0 ～ 99.99 |
|
Dynamic range |
＞32dB |
Port Type |
BNC |
|
Resolving Power |
≥40 |
Operating Temperature (℃) |
-20～50 |
|
Frequency Range(MHz) |
0.5 ～ 15 |
H×W×D(mm) |
240×180×50 |
|
Gain(dB) |
0 ～ 110 |
Weight(kg) |
1.8 |
|
Material Velocity(m/s) |
1000 ～ 9999 |
|
|
Standard delivery
Digital Ultrasonic Flaw Detector Main unit
2.5MHz-ф20 straight probe
4MHz-8x9mm, 60 degree angle probe
4A/9V power adapter
Probe connection cable (BNC to BNC)
Probe connection cable (BNC to LEMO)
USB2.0 –RS232 converter
Instruction manual
Calibration certificate
Carrying case
Additional accessories
Data managing software
Data managing cable RS232
Leather bag
All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz
Connection cable for probe LEMO and BNC
Lithium ion battery
Power adapter (4A/9V)
Test block V1
Test block V2
Test block DAC, ASME etc.
