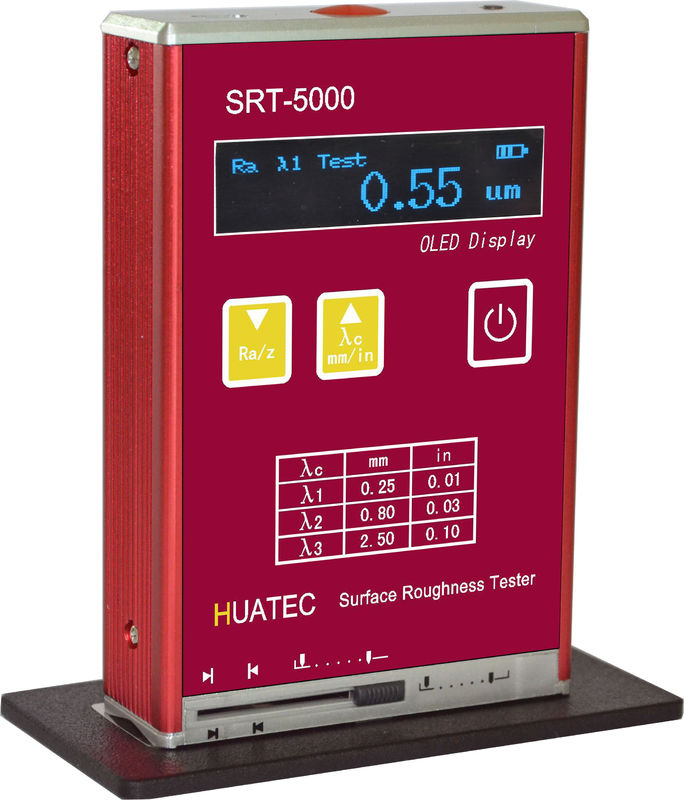

Surface Roughness Tester SRT-5000
Key Words:surface roughness, surface finish, portable roughness tester, roughness ra, portable roughness tester, roughness tester mitutoyo, roughness testing machine, surface finish tester, surface roughness tester manufacture, roughness testing machine manufactureHandheld Surface Roughness Tester SRT5000

Features:

Appearance using pull aluminum mould design, durable, anti-electromagnetism interference ability significant, accord with current design new trend.
By using high-speed DSP processors for the data processing and calculation, measuring and calculation speed is greatly improved.
Liquid crystal adopts popular OLED display, high brightness, no perspective, wide temperature.It is suitable for various applications.
Using lithium ion rechargeable batteries, it can work long hours with no memory effect.It also can work with charging .Charging time is short, while the battery life is long.
Use the common USB interface to charge and communication .Use special charger or  the computer USB port of chargeIt’s convenient and quick.
Dot matrix LCD display, interface message is rich.
Real-time monitoring of lithium battery power and display, electric charge and timely remind users.
Automatic shutdown function, low power consumption and hardware design make instrument working hours exceeds. It is suitable for all kinds of field use.
The sensors head has the protect door, which protect the head of the sensors effectively. Guarantee the accuracy of measurement.

SPECIFICATIONS:

Measurement Parameters(µm):Ra Rz Rq Rt
Stroke Length(mm):6
Sampling Length(mm):0.25 , 0.80 , 2.50
Evaluation Length(mm):1.25 , 4.0 ,
Measurement Range(µm ):Ra:         0.05 ~ 10.0
                                                          Rz:         0.1 ~ 50
Error of Indication:       ±15%
Varation of Indication:   ＜12%
Touch needle tip arc radius and angle of the sensor
Tip arc radius:10 µm±1 µm
                             Angle:90
The sensor touch needle static force measurement and its rate
Touch needle static force measurement:    ≤ 0.016N
Force measurement rate:       ≤ 800N/m
Sensor guide head pressure:  ≤ 0.5N
Battery:                      3.7V Lithium Ion battery
Contour Dimension:         106 mm×70 mm×24 mm
Weight:200g
Working Environment Conditions
Temperature:  -20℃～40℃
Relative Humidity:  <  90%
Surrounding no vibration and no corrosive medium.

Standard Accessories of surface roughness tester SRT-5000:

Main unit…………… . ..1pc.
Carrying case………… 1 pc.
Operation manual…….1 pc.
Standard sample plate 1 [c
Product certificate        1 pc
