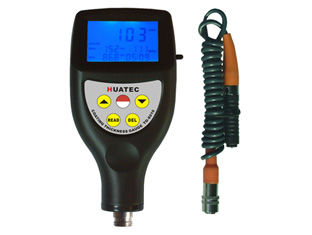

Automatic Coating Thickness Gauge

1.FEATURES

* Coating thickness gauge TG-8010 meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some

alloy tile, paper etc.

* The N probes measure the thickness of non-magneticcoatingsonnon magneticmetals.Itisusedon anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.

2.SPECIFICATIONS

Display: 4 digits LCD, backlit

Range: 0~1250 μm/0~50mil

(other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 μm (0~99.9μm);

1 μm (over 100μm)

Accuracy: ±1~3%n or 2.5 μm or 0.1mil

(Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C interface

Power supply: 2x1.5 AAA(UM-4) battery

Operating condition: Temp. 0~50℃.

Humidity <95% .

Size: 126x65x35 mm;  5.0x2.6x1.6 inch

Weight: about 81g(not including batteries)

Standard delivery of Coating thickness gauge TG-8010:

Carrying case ...................1 pc.

Operation manual ............ 1 pc.

F probe in built .................1 pc.

NF probe in built...............1 pc.

Calibration foils ..............1set.

Substrate (Iron) ................1 pc.

Substrate (Aluminium)......1 pc.

Optional accessories: RS-232C cable & software:

1.USB adaptor for RS-232C
2.Bluetooth  interface
