Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment

  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
  • Differential Inductive Sensor Surface Tester Roughness Motif Waviness Profile Equipment
Place of Origin China
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number SRT-7300
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 2 days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Parameters Roughness Ramax, Ramin, Ra, Rasd, Rqmax, Rqmin, Rq, Rqsd, Rzmax, Rzmin, Rz, Rzsd, Rt, R3z, Rcmax, Rcmin, Rc, Rcsd, Rpmax, Rpmin, Rp, Rpsd, Rvmax, Rvmin, Rv, Rvsd, Rsmmax, RSmmin, RSm, RSmsd, Pc, RΔamax, RΔamin, RΔa, RΔasd, RΔqmax, RΔqmin, RΔq, RΔqsd, Rλamax, Rλamin,
Parameters Waviness Wamax, Wamin, Wa, Wasd, Wqmax, Wqmin, Wq, Wqsd, Wzmax, Wzmin, Wz, Wzsd, Wt, Wcmax, Wcmin, Wc, Wcsd, Wpmax, Wpmin, Wp, Wpsd, Wvmax, Wvmin, Wv, Wvsd, WSmmax, Wsmmin, WSm, WSmsd, WΔqmax, WΔqmin, WΔq, WΔqsd, Wskmax, Wskmin, Wsk, Wsksd, Wkumax, Wkumi, Wku, Wkus Display LCD Screen
Battery Built-in Lithium Ion Rechargeable Battery And A Charging Control Circuit, High Capacity Memory 100 Groups Of Original Data And Waveform
Parameters 3. Roughness, Waviness And Original Contour Parameters Can Be Measured And Graphics Can Be Displayed Product Name Surface Roughness Equipment
Iinductive Sensor X Direction 30mm Measurement Range ±500μm
Standards Meet ISO1997,Din1990,ASME1995,JIS1994
Highlight

Roughness Tester China

,

Roughness Meter China

,

Surface Tester China
Leave a Message
Product Description

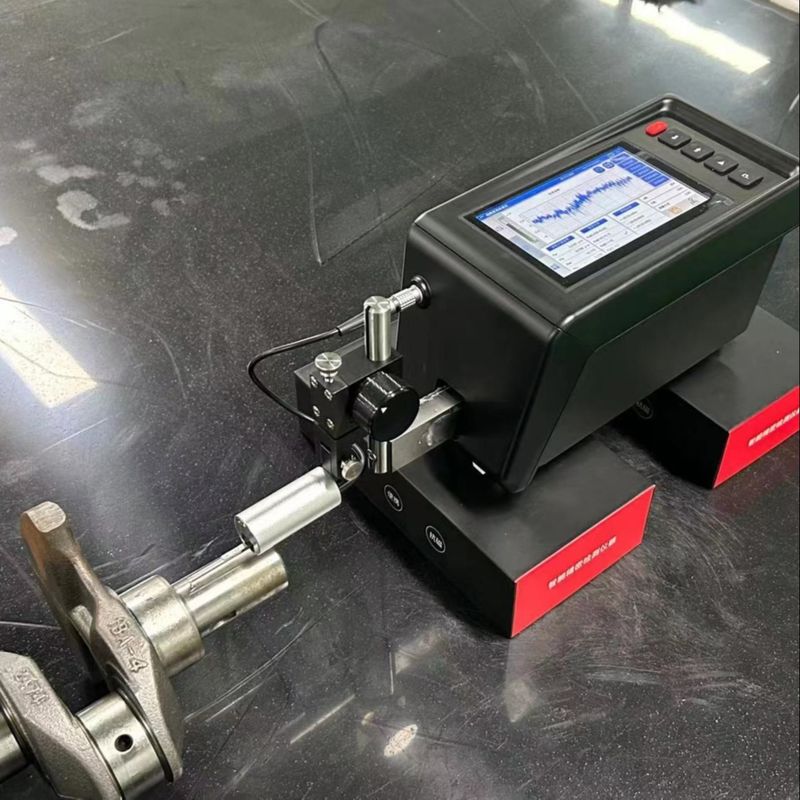

Differential Inductive Sensor Roughness Motif Waviness Profile Surface Roughness Equipment



Standards meet:ISO1997,Din1990,ASME1995,JIS1994



Application Field:

With function of multiple parameters, it can evaluate the roughness, waviness and original contour of a variety of parts.

It can measure plane, cylindrical and cylindrical surfaces, inner hole surface and bearing raceway, etc.

It has the characteristics of large measurement range, stable performance and high precision.

It is suitable for production site, scientific research laboratory and enterprise measurement room.



Features:

1. Scratch depth and step height can be measured

2. 500um super large range inductive sensor, (1000um for model SRT-7310+)

3. Roughness, waviness and original contour parameters can be measured and graphics can be displayed.

4. There are two measurement methods with and without guide.

5. The sensor is connected with the host through the sensor lifting frame, and the height of the sensor can be adjusted without the help of the platform

6. SRT-7300 roughness waviness,motif and profile measuring instrument is a product comply with the latest ISO international standards. It is a multi-purpose portable instrument for evaluating the surface finish quality of parts.

7. The corresponding parameters are calculated according to the selected measurement conditions, and the measurement results can be displayed on the LCD screen in the form of numbers and graphics, or output to the printer.

8. The SRT-7300 can also be connected to a computer. The computer special analysis software can directly control the measurement operation and provide powerful advanced analysis functions.

9. The instrument performs parameter calculation on filter profile and direct profile, and all calculations comply with GB / t3505-2009 (product geometric technical specification (GPS), surface structure, profile method, terms, definitions and surface structure parameters).



Technical parameters

Testing range X direction range 30mm (sensor movement distance)
Z direction range ±500μm (optional ±1000μm for model SRT-7310+)
Resolution X direction 0.00016μm/±μm -0.016μm/±400μm
Drive straightness (0.05+2.5L/1000)μm (L；testing length(mm) )
Analysis item Corresponding Standard ISO1997,Din1990,ASME1995,JIS1994
Parameters Roughness Ramax, Ramin, Ra, Rasd, Rqmax, Rqmin, Rq, Rqsd, Rzmax, Rzmin, Rz, Rzsd, Rt, R3z, Rcmax, Rcmin, Rc, Rcsd, Rpmax, Rpmin, Rp, Rpsd, Rvmax, Rvmin, Rv, Rvsd, Rsmmax, RSmmin, RSm, RSmsd, Pc, RΔamax, RΔamin, RΔa, RΔasd, RΔqmax, RΔqmin, RΔq, RΔqsd, Rλamax, Rλamin, Rλa, Rλasd, Rλqmax, Rλqmin, Rλq, Rλqsd, Lr, Rskmax, Rskmin, Rsk, Rsksd, Rkumax, Rkumin, Rku, Rkusd, Rmax, Rmin, RzImax, RzImin, Rz.I, Rz.Isd, Rsmax, Rsmin, RS, RSsd, Rsk.J, Rku.J, Rpm, Rpmsd, Rymax, Rymin, Ry, Rysd, Smmax, Smmin, Sm, Smsd, Smax, Smin, S, Ssd
Waviness Wamax, Wamin, Wa, Wasd, Wqmax, Wqmin, Wq, Wqsd, Wzmax, Wzmin, Wz, Wzsd, Wt, Wcmax, Wcmin, Wc, Wcsd, Wpmax, Wpmin, Wp, Wpsd, Wvmax, Wvmin, Wv, Wvsd, WSmmax, Wsmmin, WSm, WSmsd, WΔqmax, WΔqmin, WΔq, WΔqsd, Wskmax, Wskmin, Wsk, Wsksd, Wkumax, Wkumin, Wku, Wkusd, Wca, WC-q, WC-t, WC-v, WC-Sm
Profile Pa, Pq, Pt, Rz.J, Pc.I, Pp, Pv, PSm, PΔq, TITL, Psk.J, Pku.J, Rmax
Special Roughness Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2
Motif NCRX, R, Rx, AR, NR, CPM, SR, SAR, W, Wx, AW, Wte, NW, SW, SAW
Evaluation Curve Roughness curve, waviness curve, profile curve, special roughness curve, roughness Motif curve, waviness Motif curve, envelope waviness curve
Characteristic curve Load curve , amplitude distribution curve
Filter Filter Gauss filter, FFT filter, 2RC filter
Filter stop λc :0.25,0.8,2.5,8mm
λs:0.25,0.8,2.5,8,25,80μm λf: 25mm
Evaluation length 　 　
Testing Speed 　 0.1mm/s,0.5mm/s,1.0mm/s,1.5mm/s,2.0mm/s
Sensor Model 　 Standard Universal type
Sensor mode 　 Differential inductance
Testing range 　 ±500μm (±1000μm SRT-7310+)
Testing needle 　 5μmR diamond 90°
Testing Force 　 below 4mN
Operator Display 　 7 inch color LCD touch screen
Data output 　 SD card/bluetooth connecting PC/PC printer
Language 　 Chinese/English
Size and Weight Power/consumption 　 AC220V±10% Built-in rechargeable battery (AC transformer charging) , charging time 5 hours
Power consumption 　 About 30VA( It can be measured up to 400 times on a full charge)
Weight 　 Net weight 3.4Kg Gross weight 4.75Kg
Setting Size 　 Driver 364(W)*80(D)*145(H)
Operator 212(W)*182(D)*50(H)
Package size 　 410mm(W)*340(D)*180(H)



Standard delivery



Host Actuator 1
SRT-7300 main unit 1
Sensor 1
Charger 1
Standard stylus 1
Roughness standard test block 1
Product Certificate 1
Product manual 1
Warranty card 1
Host waterproof box 1
Random tools Hexagon wrench(2.5mm)*1
