Home > products > Magnetic Particle Testing > Asme-2007 Magnetic Flux Indicator Cx-430 GOST
Asme-2007 Magnetic Flux Indicator Cx-430 GOST
Asme-2007 Magnetic Flux Indicator Cx-430 GOST
Asme-2007 Magnetic Flux Indicator Cx-430 GOST
Asme-2007 Magnetic Flux Indicator Cx-430 GOST

Asme-2007 Magnetic Flux Indicator Cx-430 GOST

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: CX-430

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

asme-2007 magnetic flux indicator

,

cx-430 magnetic flux indicator

Material:
DT4A Electromagnetic Pure Iron Plate
Color:
Metal Surface Presents Bright Silver, No Rust.no Scratch, No Corrosion And So On
Planeness:
Put The Test Piece On Bare Board, Parallel Completely.no Wrinkle.no Burts.the Surface’s Roughness RA Is 0.005inch
Flaw Depth:
30% Shim Thickness, 0.004" Thick
Diameter Of Symbol:
0.235inch
Thickness Of Test Piece Cx4-230:
0.004inch
Groove Depth:
0.0006inch
Groove Width:
0.006inch
Product Name:
Quantitative Quality Indicators
Material:
DT4A Electromagnetic Pure Iron Plate
Color:
Metal Surface Presents Bright Silver, No Rust.no Scratch, No Corrosion And So On
Planeness:
Put The Test Piece On Bare Board, Parallel Completely.no Wrinkle.no Burts.the Surface’s Roughness RA Is 0.005inch
Flaw Depth:
30% Shim Thickness, 0.004" Thick
Diameter Of Symbol:
0.235inch
Thickness Of Test Piece Cx4-230:
0.004inch
Groove Depth:
0.0006inch
Groove Width:
0.006inch
Product Name:
Quantitative Quality Indicators
Product Description

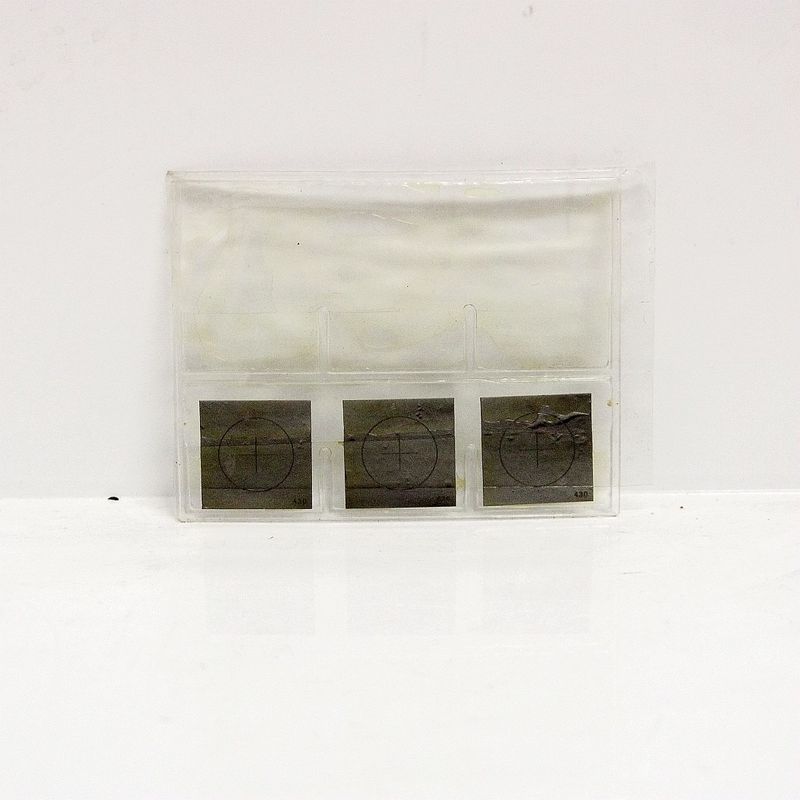

ASME-2007 Quantitative Quality Indicators Magnetic Flux Indicator QQI Test Shim CX-430



Overview

QQI's (Quantitative Quality Indicators) are magnetic particle test pieces with artificial defects used to verify proper field direction and adequate field strength. QQI's are a valuable tool to be used to establish testing criteria with Multi-Directional 2-D and 3-D type testers and to increase productivity by minimizing magnetizing shots.

QQI's are both thin and flexible to conform to the geometry of the test piece. They must be held in intimate contact with the test piece by either tape or glue.



Asme-2007 Magnetic Flux Indicator Cx-430 GOST 0



Specifications

Inspection items The condition, method and demand of the test Inspection demand
Color Metal surface presents bright silver, no rust.no scratch, no corrosion and so on Passed muster
Planeness Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.8um Passed muster
The size of sheet iron and cutting groove

The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece CX-430 is 0.004in .The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“o”is 0.507in,symbor“+”is 0.25in.

The thickness of test piece CX-430 is 0.004in.the groove depth is 0.0012in, the groove width is 0.007in.



 Passed muster
Quality

The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate.

The analytic result of raw materials accords with the rule of GB6985,

 Passed muster




Asme-2007 Magnetic Flux Indicator Cx-430 GOST 1

Other Magnetic flaw  detectors test block:



MT  test block

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 2

Type N1: 45N, 5kgs

Type N2: 118N 12kgs

Type N3: 177N 18kgs



MT standard block

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 3

Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter  0.07inch, center hole diameter 31.8mm





Asme-2007 Magnetic Flux Indicator Cx-430 GOST 4

Type E: AC



Asme-2007 Magnetic Flux Indicator Cx-430 GOST 5

 MTU test blcok
