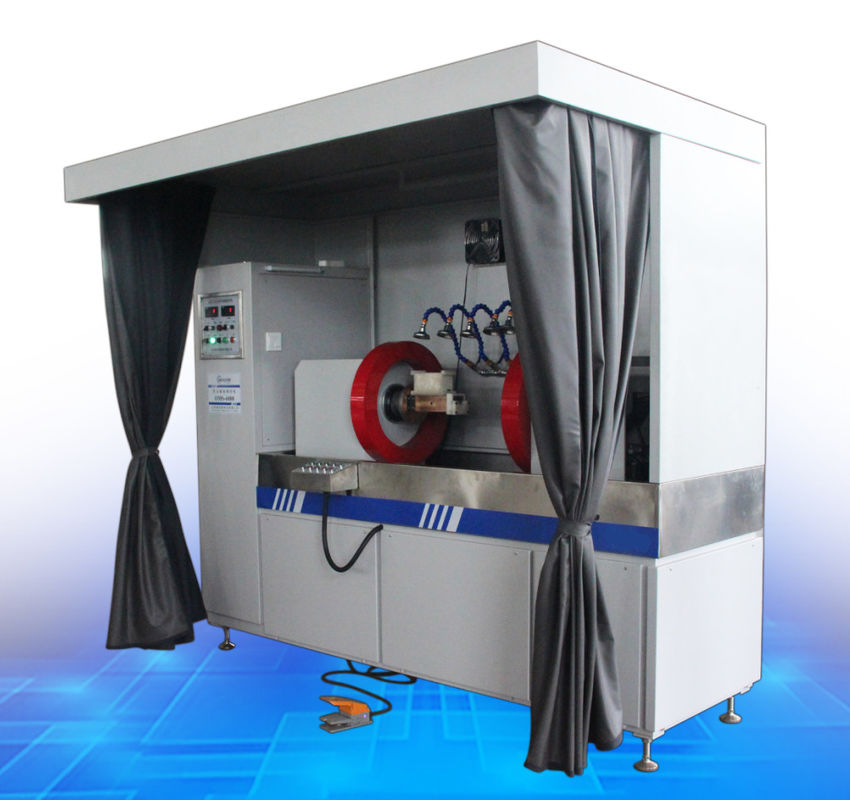

HMP-4000DC Fluorescent Magnetic Particle Inspection Equipment AC&DC magnetizing 4000amp
Summary
Fluorescent magnetic particle flaw detector is used to detect cracks and slag inclusions on the surface and near surface of ferromagnetic workpieces (such as bolts, pin shafts, shaft sleeves, gears, gear rings, crankshafts, etc.) due to forging, quenching, grinding, fatigue, etc.
AC magnetized standard test piece
DC magnetizing test ring
| Technical Specificaitons | ||
|
electric current
|
AC/DC (half wave, single-phase full wave, three-phase full wave) | |
| Circumferential magnetizing current(A) |
(AC) 0-4000A(RMS)continuously adjustable with power off phase control； (HWDC) 0-4000A(2X Average) |
|
| Longitudinal magnetized magnetic flux potential(AT) |
(AC) 0-18000AT(RMS)Continuously adjustable, with power off phase control； (HWDC) 0-18000AT(2X Average) |
|
| Optional coil inside diameter(mm) | 400 | |
| Optional maximum electrode spacing(mm) | 1500 | |
| Main Unit | Separate type (electrical control cabinet is separated from the host) | |
| Sensitivity | Type A test piece (30/50, 15/50) shows clearly | |
| Temporary loading rate | ≤20% | |
| Control way | Manual/semi-automatic | |
| Operation interface(*) | Button/touch screen | |
| Clamping mode(*) | Electric and pneumatic | |
| Rotation mode | Electric | |
| AC magnetization method | Circumferential magnetization, Longitudinal magnetization, Compound magnetization | |
| AC demagnetization mode | Automatic attenuation demagnetization | |
| Rectification mode | Single phase half wave, single phase full wave, three-phase full wave | |
| AC and DC magnetization method(*) | Circumferential AC magnetization, circumferential DC magnetization, longitudinal AC magnetization, longitudinal DC magnetization, circumferential AC longitudinal DC compound magnetization, circumferential DC longitudinal AC compound magnetization | |
| DC demagnetization mode(*) | Ultra-low frequency demagnetization | |
| UV Light | Hanging type, hand-held type | |
| Spraying time | 3"～6" / manual | |
| Magnetization time | 0.5"~2"/time | |
| Rotation observation time | 5"～10"/Week | |
| AC demagnetization time | 3"~5"/time | |
| Air source | 0.4-0.8MPa | |
| Power Supply | Three phase five wire,380V±10%,50Hz | |
| Dimension(mm) | Length:3m | |
| Width:800~1200mm(Width of add darkroom:2000mm) | ||
Configuration(I)
Features
- Simple structure, high reliability, economic and practical
- Small size, flexible and convenient use
- Fluorescent or non fluorescent magnetic particle inspection
- Circumferential, longitudinal and composite magnetization
- Continuous adjustable current, automatic attenuation demagnetization
- Simple dark room
Configuration table A
|
Type
|
A |
| Programmable Logic Controller (PLC) | ● |
| Digital ammeter | ● |
| Portable UV light | ○ |
| Fixed ultraviolet lamp | ● |
| Shading room | ● |
| V-bracket | ● |
| Manual &pedal tightening | ○ |
Note:“●”is standard delivery,“○”is optional accessories.
Configuration(II)
Features
l Semi closed darkroom with unique shape design
l Fixed ultraviolet lamp
l Fluorescent or non fluorescent magnetic particle inspection
l Circumferential, longitudinal and composite magnetization
l The current is continuously adjustable, can be preset, and the true RMS is displayed
Configuration table B:
|
B |
|
|
● |
|
|
○ |
|
|
○ |
|
|
● |
|
|
● |
Note:“●”is standard delivery,“○”is optional accessories.
-
