Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe

Brand Name:	HUATEC
Model Number:	TG-2930
MOQ:	1pcs
Packaging Details:	Standard export package
Payment Terms:	T/T, Paypal, Western Union

Detail Information

Product Description

ratings& Reviews

Detail Information

Place of Origin:

Beijing

Certification:

ISO, CE, GOST

Operating Principle:

ULTROSONIC

Measuring Range:

1.0-200mm, 0.05-8inch

Sound Velocity:

500-9000m/s

Display:

5 Digits LCD With EL Backlight

Resolution:

0.1mm Or 0.01mm

Interface:

RS232C

Power Supply:

4x1.5V AAA Battery

Dimensions:

126x65x27mm

Weight:

Probe:

In Built, No Cable

Supply Ability:

500pcs per month

Highlight:

bluetooth ut thickness gauge

bluetooth ultrasonic gauge

lcd ultrasonic thickness gauge

Product Description

Bluetooth Ultrasonic Thickness Gauge measuring pipe wall thickness

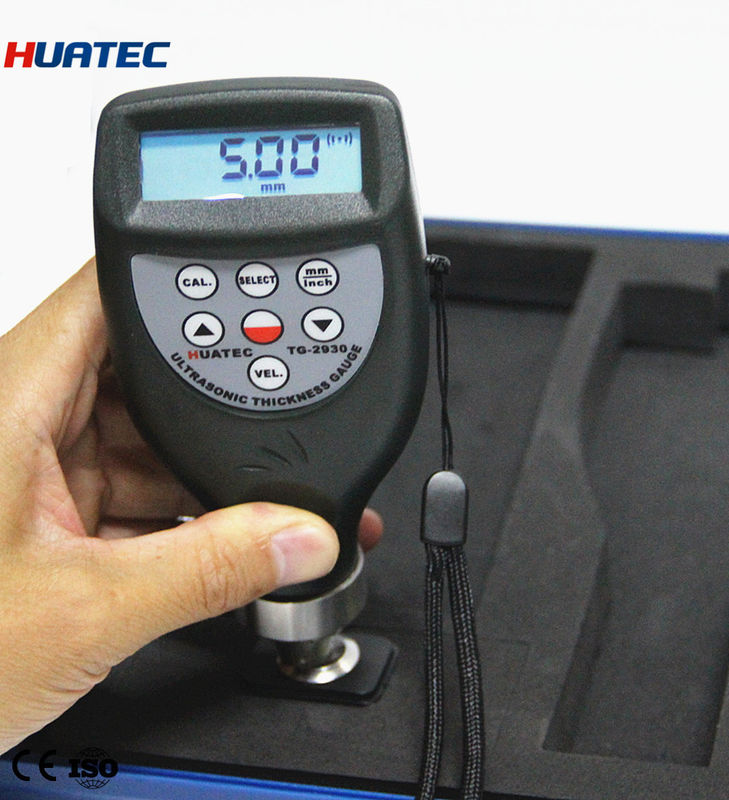

Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe 0

Application:

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

Interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)

Standard Delivery

Main unit                                                1
5M Φ8 Transducer  inbuilt 1
Couplant bottle                                     1
Carrying case                                        1
Instruction manual 1

Optional Accessories

Cable and Software for RS232C interface

Bluetooth

Packaging and Shipping

Packaging: Standard export package, canton

Delivery: 3-7 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.

Our Services:

Warranty: One year

After sales service and maintenance: Lifelong

Sound velocity

Platinum	0.130	3300
Plexiglass	0.110	1700
Polyethylene	0.070	1900
Polystyrene	0.0930	2400
Polyurethane	0.0700	1900
Quartz	0.230	5800
Rubber, Butyl	0.070	1800
Silver	0.140	3600
Steel, Mild	0.232	5900
Steel, Stainless	0.230	5800
Teflon	0.060	1400
Tin	0.130	3300
Titanium	0.240	6100
Tungsten	0.200	5200
Uranium	0.130	3400
Water	0.584	1480
Zinc	0.170	4200

Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe 1
