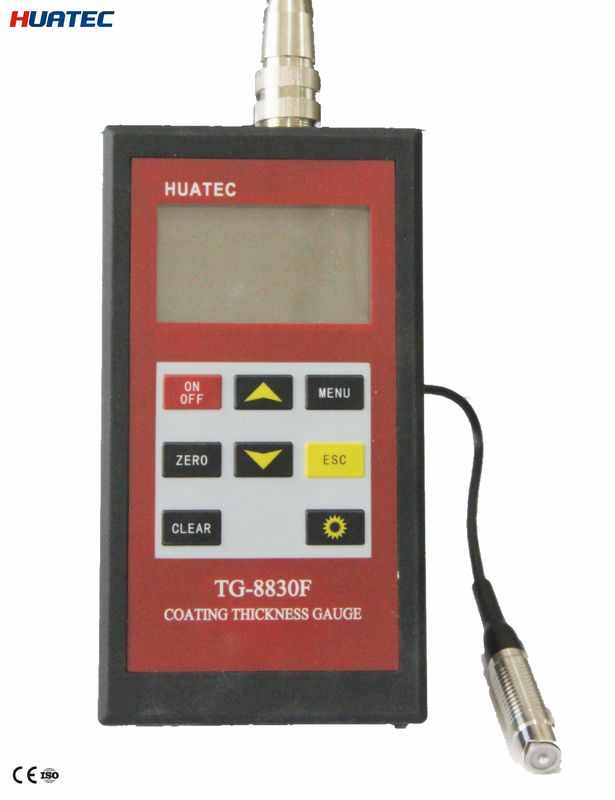

HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG-8830F

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: around USD300

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                oating thickness tester, digital thickness gauge


Product Description

HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge

TG8830F portable coating thickness gauge is using the magnetism measuring thickness method .

It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) .

This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.

Features

Precise measurements (2%+1)/(1%+1)
Quick measuring response and rapid measuring speed
Design of two independent parts , better applicability, stable measurement results
Strong data processing and analysis :5 types of Statistic value and histogram

Technical Specification

Measuring range	F1:0~1250μm,
Measuring accuracy	1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)
Calibration	1 point calibration /2 point calibration /basic calibration
Display resolution	0.1um (0~99.9um) / 1um (Over 100um)
Weight	250g(including battery package )
Operation environment	Temperature: 0℃~50℃ humidity: 20%RH～90%RH
Operation mode	Direct testing mode and block statistics mode
Measuring mode	continuous/single
Shutdown mode	manual/automatic
Operation alarm	Ring music to alarm mistake
Signal Dealing
Threshold	Limits setting and automatically alarm measured values out of limit
Data analysis	Analyzing a batch of measuring values via histogram
Statistic function	Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum
Data Merory
Thickness values	500 measuring data
Delete	Single doubtful data / All data of one group
Power supply
Battery	9V Nickel-hydride/ alkaline batteries
Power battery inspection	low voltage indication
Standard delivery	Main unit	1
	Integrated probe (F1)	1
	Calibration foil set	4
	Calibration base set	1
	9V alkaline battery	1
	Instruction manual	1
