Water-Proofing Digital Eddy Current Instrument Electrical Portable

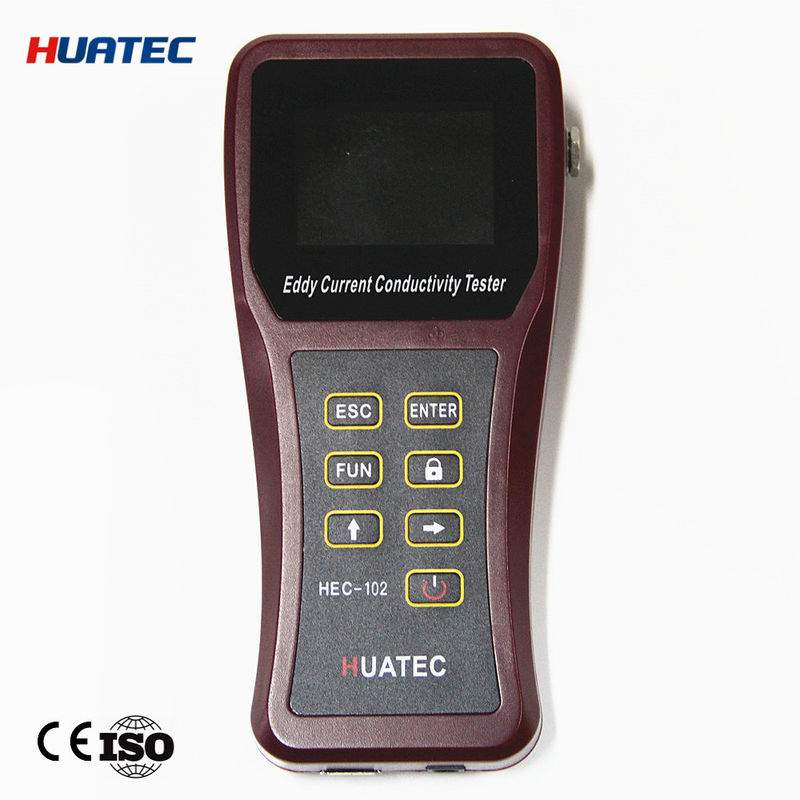

Water-Proofing Digital Eddy Current Resistivity Testing Instrument Electrical Portable
HEC-102 of eddy current electrical conductivity meters, which are designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials.
Application:
★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy；
★ Test the conductivity whenthe aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★ Test the resistivity ofconductivematerials；
★ Analyze thermal properties ofmaterials.
HEC-102 use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. About HEC-100, two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.
HEC-102 Technical parameters
| Measurement technology | Eddy current | ||
| Operating frequency | 60KHz,120KHz | ||
| Display screen | 240X320 pixels TFT-LCD | ||
| L*B*H | 180*80*30 mm | ||
| Instrument case | Anti-intense impact, water-proofing polyester; Toolbox. | ||
| Weight | 260g | ||
| conductivity standard block | Verify and guarantee temperature compensation. | ||
| Measuring range | Conductivity | 6.9%IACS－110%IACS(4.0MS/m－64MS/m) | |
| Resistivity | Correspond the Conductivity | ||
| Distinguishing rate |
0.01% IACS 0.000001Ω·(mm)2/m |
||
| Probe compensated | 0.3mm | ||
| Measuring accuracy |
0°C to 50°C ±0.1%IACS~0.5%IACS |
||
| Temperature compensation | Automatic compensation to the value of 20 ℃. | ||
| Normal work environment | Relative humidity | 0～95% | |
| Operating temperature | 0℃～50℃ | ||
| Data storage | Can store 1000 measurement data. | ||
| Probe |
Diameter: 12mm Applicable to minimum measuring area diameter at 60KHz is 12mm. |
||
|
Diameter: 8mm Applicable to minimum measuring area diameter at 60KHz is 8mm. |
|||
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 3-15 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
-
