Ndt LCD Display 0.6KV Electronic Water Leak Detector

Brand Name:	HUATEC
Model Number:	HD-107
MOQ:	1pcs
Packaging Details:	Standard export package
Payment Terms:	T/T, Paypal, Western Union

Detail Information

Product Description

ratings& Reviews

Detail Information

Place of Origin:

Beijing

Certification:

ISO, CE, GOST

Detector Range:

0.1mm~35mm Affected By The Soil Environment On Site

Output Voltage:

0.6KV~50KV

Display:

LCD Display

Weight:

3.5kg

Size:

220 × 130 × 88 Mm

Testing:

Non Destructive Testing

Battery:

12V/2200mA,rechargeable Li-ion Battery

Alarm:

Peak-ringing Alarm

Product Name:

Geomembrane Leak Detector

Brand:

HUATEC

Application:

Suitable For Floor Waterproofing, Pond Waterproofing, Pit Leakage, River Dam Waterproofing And Other Construction Waterproofing Detection

Supply Ability:

500pcs per month

Highlight:

0.6KV Electronic Water Leak Detector

Ndt Electronic Water Leak Detector

0.6KV Ndt Water Leak Detector

Product Description

Floor Waterproofing Pond
Waterproofing Pit Leakage River Dam
Waterproofing Construction
Waterproofing Detector

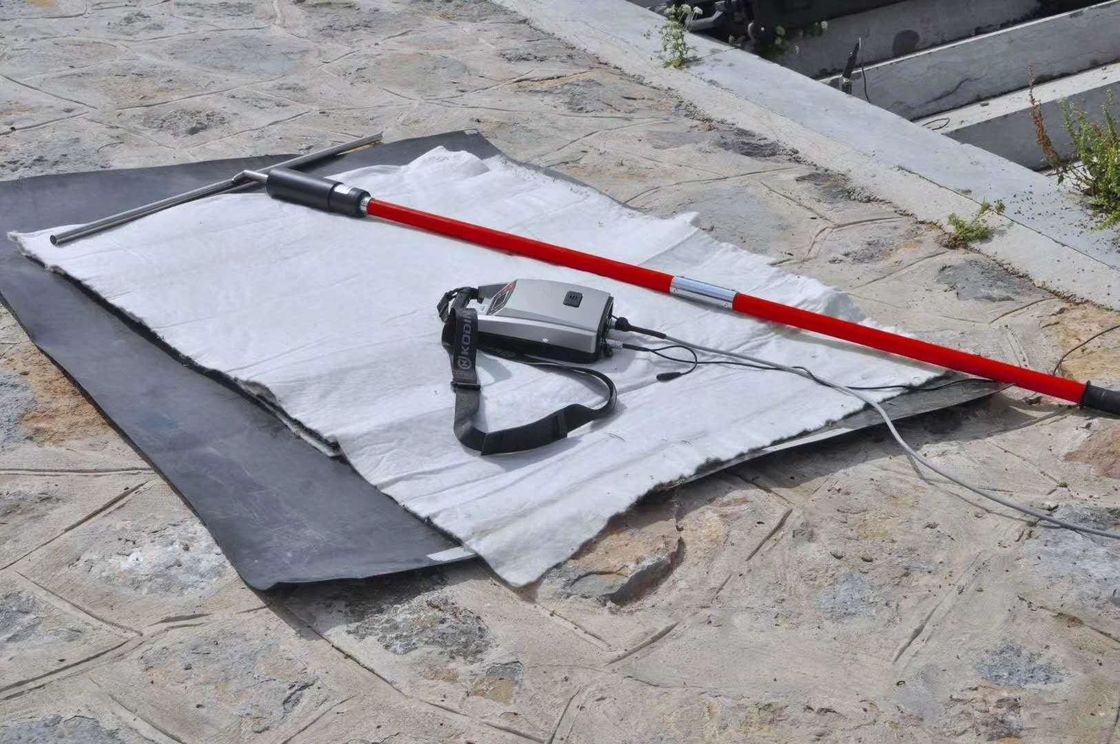

Geomembrane Leak Detector HD-107

HUATEC HD-107 Geomembrane leak detection equipment, at the scene of the absorption adopt a generation of user feedback, on the basis of the integration of various conditions around the application experience, further optimization, by testing the large, improve the core component of pressure, make the output voltage of up to 50 kv, according to check the thickness of the geomembrane, conductivity, and soil dry and wet sensitivity can fit match, with better easily detect funnelled position, and continue to alarm prompt.This system equipment still has good portability and operability. After the upgrade, the output is more linear and the detection of leakage point is more efficient. In view of the large battery capacity doubling to 4400AMH, it is more suitable for long-term continuous construction in the field.

Main Application

The HD-107 equipment is suitable for floor waterproofing, pond waterproofing, pit leakage, river dam waterproofing and other construction waterproofing detection.

The HD-107 is suitable for geomembrane type: HDPE LDPE PVC polypropylene asphalt geomembrane conductive supported geomembrane any other electrical insulation material. Suitable type of geomembrane subgrade: compacted clay with suitable electrical conductivity concrete suitable electrical conductivity GCL conductive aluminum foil of geosynthetics, etc.

Main technical performance:

1. Output high voltage: 0.6kV ~ 50KV (stepless continuous adjustable)

2. Detection thickness: 0.1~35mm (affected by the soil environment on site)

2. Direct indication of output high voltage value

3. Variable sensitivity

4. Battery: 12V/2200mA

5. Power consumption: ≤5W

6. Main engine volume: 220 × 130 × 88 mm

7. With background light

8. Instantaneous power on, automatic power off and shutdown

9.3 LIQUID crystal display output voltage, full touch panel

10. Alarm: Peak-ringing alarm

Ndt LCD Display 0.6KV Electronic Water Leak Detector 0
