Large Storage Vibration Meter High Accuracy Full Automatic Measurement

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG605

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                vibration analyzer, digital vibration meter


Overall Accuracy:	±5%	Temperature Range:	0 - 50C
Frequency Span:	100, 200, 500, 1k, 2k, 5k, 10k (Hz).	Dimensions:	196 X 101 X 45 (mm)
Weight:	1100g	Standard:	Built-in ISO Standard For Health Evaluation

Overall Accuracy:	±5%
Temperature Range:	0 - 50C
Frequency Span:	100, 200, 500, 1k, 2k, 5k, 10k (Hz).
Dimensions:	196 X 101 X 45 (mm)
Weight:	1100g
Standard:	Built-in ISO Standard For Health Evaluation

Product Description

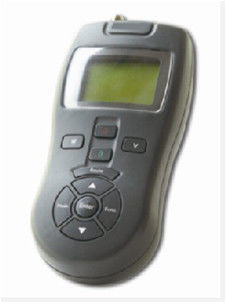

Hand held Vibration Meter Vibration Data Collector Vibration Meters Handheld HG605t HG908

Features:

• Large storage, Full automatic measurement

• Automatic qualitative diagnosis of machinery faults based on time domain characteristics: Askew index, Kurtosis index

• Envelope demodulation of acceleration for gears and bearings diagnosis

• Measure single parameter continuous or all parameters (Acc,Vel, Disp, Envelope) one after another for quick field collection

• Built-in ISO standard for health evaluation

• Optional: Laser-aimed infrared non-contact temperature measurement module(integrated).

Specifications:

• Measurement accuracy: + 5%.

• Frequency span: 100, 200, 500, 1k, 2k, 5k, 10k (Hz).

• Environmental temperature: -10°- 40 (degrees Celsius)

• Relative humidity: <85% (non-saturated)

• The sampling frequency is 2.56 times of the frequency span.

• Anti-aliasing filter: 8-order ellipse

• Power supply: Nickel-Hydrogen battery. Work for at least 8 hours continuously after fully charged. Storage capacity for 600 sets of data (including sequential number, Point ID, peak of acceleration, RMS of velocity, peak-peak of displacement, and RMS of envelope) and 48 x 1024-points vibration waveforms.

• Dimensions: 196 x 101 x 45 (mm)

• Weight: 1100 grams (including battery)

• Accessories: 1 accelerometer, 1 magnetic mount, 1 probe, 1 battery charger, 2 cables for sensor and communication, and condition monitoring software HUATEC WAVE
