Small , Portable 60° Angle Bench Glossmeter Instrument with 0-2000GU Range

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: 1506

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                digital thickness gauge, coating thickness meter


Angle:	60°	Range:	0-2000GU
Repeatability:	±0.5GU（0-199.9GU)	Precision:	1GU
Measurement Area:	2x2mm	Display Resolution:	320×240
Control:	Touch Screen With One Key Measurement	Memory:	3000 Readings
Operation Temperature:	-10℃～40℃	Port:	USB
Dimension:	220×190×85mm (L×W×H）	Weight:	3kg

Angle:	60°
Range:	0-2000GU
Repeatability:	±0.5GU（0-199.9GU)
Precision:	1GU
Measurement Area:	2x2mm
Display Resolution:	320×240
Control:	Touch Screen With One Key Measurement
Memory:	3000 Readings
Operation Temperature:	-10℃～40℃
Port:	USB
Dimension:	220×190×85mm (L×W×H）
Weight:	3kg

Product Description

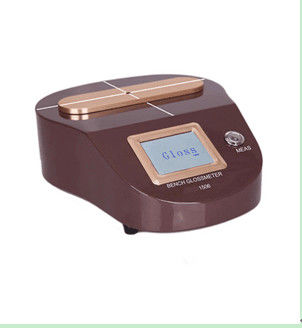

Bench Glossmeter

Product Introduction:

This small, portable instrument is made for measuring the gloss of curved surface, samll pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.

Small , Portable 60° Angle Bench Glossmeter Instrument with 0-2000GU Range 0

Introduction:

Features:

◆Automatic calibration
◆One button operation
◆Colorful touch screen displaying readings, statistics and calibration procedure status.
◆Calibration can be done automatically within one second
◆Up to 3000 readings stored.
◆Convenient measurement with infrared sensor switch
◆Footswitch available for simple measurement

Technical Specification:

◆Angle:60°
◆Range:0-2000GU
◆Repeatability: ±0.5GU(0-199.9GU)
◆Precision:1GU
◆Measurement area:2x2mm
◆Display resolution:320×240
◆Control:Touch screen with one key measurement
◆Memory:3000 readings
◆Operation temperature: -10℃～40℃
◆Port:USB
◆Dimension:220×190×85mm (L×W×H)
◆Weight:3kg

Standard:

ASTM D523, DIN 67530

Order Information :

1506 Bench Glossmeter

Other Information of Accessories:

1506/P/001 Standard Calibration
1506/P/002 USB Datacable
1506/P/003 Footswitch
1506/P/004 Optical Sensor Switch

Small , Portable 60° Angle Bench Glossmeter Instrument with 0-2000GU Range 3

Footswitch Sensor Switch
