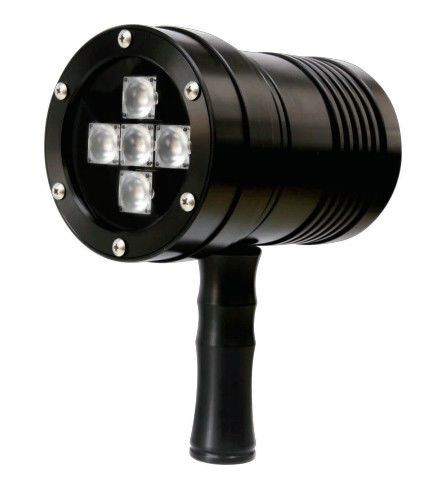

Aluminum alloy Handheld LED cold light UV lamp 365nm Ultraviolet band IEC 60529

DG series LED UV lamp is researched and developed by our company aim for fluorescence magnetic particle inspection, fluorescence reentrant inspection etc. The handheld type and cold light source is ready for use anytime. Features of all aluminum alloy structure, ultra-high illuminance and ultra-low power dissipation. It conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

Main Application

1. Fluorescence Penetrant Testing
2. Fluorescence Magnetic Particle Flaw Detection
3. Fluorescence Leak Detection

Other Application

1. Oil Stain, Blot Testing
2. Special Gas, Oil and Gas Pipeline Testing
3. Fluorescence Reflection Detection for Special Materials
4. Criminal Investigation and Legal Medical Expert Survey
5. Paper Money Authentication, Jewel Appreciation
6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Characteristic and Performance

      HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B          and UV-C element, pure spectrum.

1. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
2. High power output, quick start, can reach the maximum illuminance as soon as switched on.
3. Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.
4. Optical filter is high UV transmittance transparent Quartz optical glass.
5. The shell of the instrument is made of 6061-T6 high strength aluminium alloy precision machining. The surface is anodized, sturdy and durable.
6. The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.
7. With anti magnetic interference function, it can be used in high-intensity magnetic field.
8. Both switch and jack socket are at the end of the instrument, make it convenient to use and avoid misoperation.
9. The product has passed through International Standard of IEC 60529 dustproof and waterproof testing, wider working environment and more reliable.

Technical Parameters

Standard Configuration

Optional Configuration
