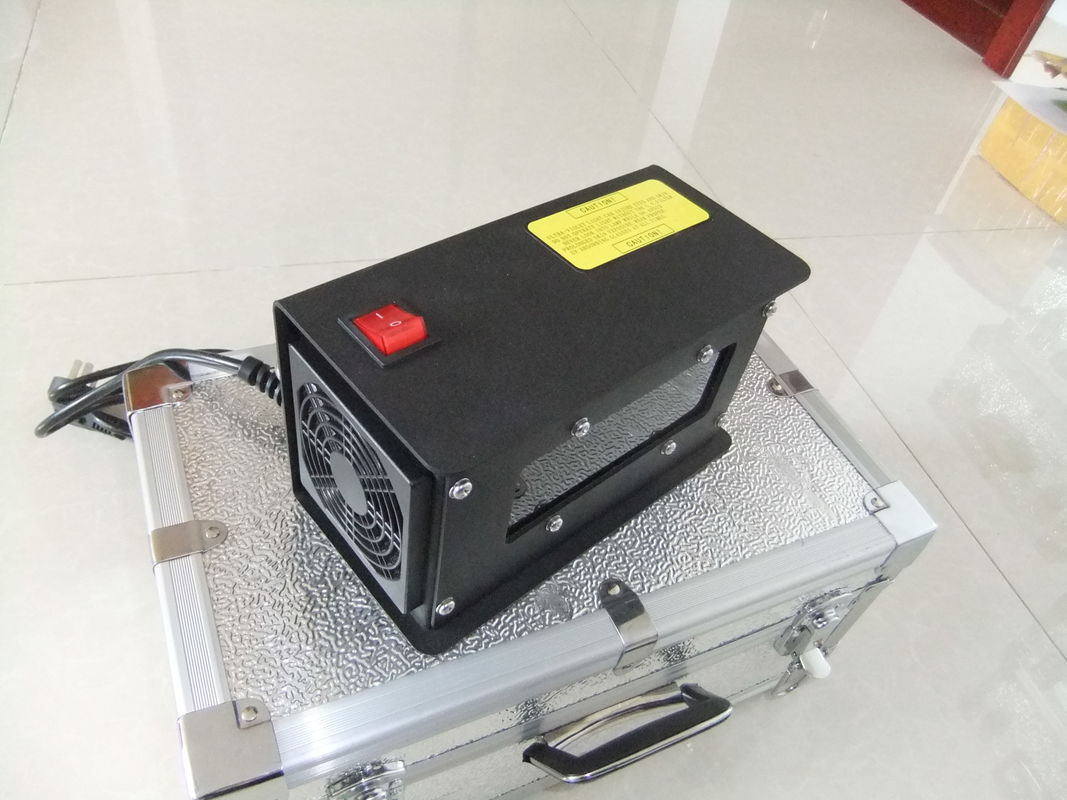

Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W
  • name

Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W

Brand Name: HUATEC
Model Number: DG-24W
MOQ: 1pcs
Packaging Details: Standard export package
Payment Terms: T/T, Paypal, Western Union
Detail Information
Product Description
ratings& Reviews
Detail Information
Place of Origin:
Beijing
Certification:
ISO, CE, GOST
Color:
Black
Supply Ability:
500pcs per month
Highlight:

mt test specimen

,

magnetic strenght meter

Product Description



Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W



Characteristic



Big area UV light source, Irradiance>6000uw/cm2

temperature rises less than 8℃

Light source life 30000H



Feature:



24VA power saving of power consumption

30000H life expectancy of light source

UV-A Irradiance>6000uw/cm2

White light Irradiance<22LUX

Chip is original import

0 UV-B/UV-C contained

Small size, Convenient to install

Continuous operation and external surface temperature rises less than 8 celsius

No need to preheat,instant to reach 100% power



UV irradiance intensity distribution diagram 380mm location



Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W 0

Dimension: (mm)

Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W 1



Technical Parameters

Itme parameter
Style Suspension

UV-FLUX

Indoor temperature 25℃

380mm location

 >6000uW/cm2
wave length

Indoor temperature 25℃

365nm±3nm(UVA)
White light content <22Lux
FLUX error 0-40℃ ±10%
Grading feature Centre grading
Power supply AC220-240V 50/60Hz
Power UV LED -24 VA
Outline dimension 220mm(W)*120mm(D)*140mm(H)
Weight 3.6kgs



Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W 2



Standard accessories:

1.Main unit 1pc

2.Carrying case 1pc

3.Calibration certificate 1pc

4.Manual 1pc
