Portable Digital Brinell Indention Tester HBI-10A / 10M with CCD Camera

  • Portable Digital Brinell Indention Tester HBI-10A / 10M with CCD Camera
  • Portable Digital Brinell Indention Tester HBI-10A / 10M with CCD Camera
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HBI-10
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Parameter 3000kgf, 1500kgf, 1000kgf, 750kgf, 500kgf, 250kgf, 187.5kgf, 100kgf And 62.5kgf Diameter Of Indenter 10mm, 5mm, 2.5mm
Measuring Range 3.18HBW~658HBW
Highlight

vickers hardness machine

,

rockwell superficial hardness tester
Leave a Message
Product Description

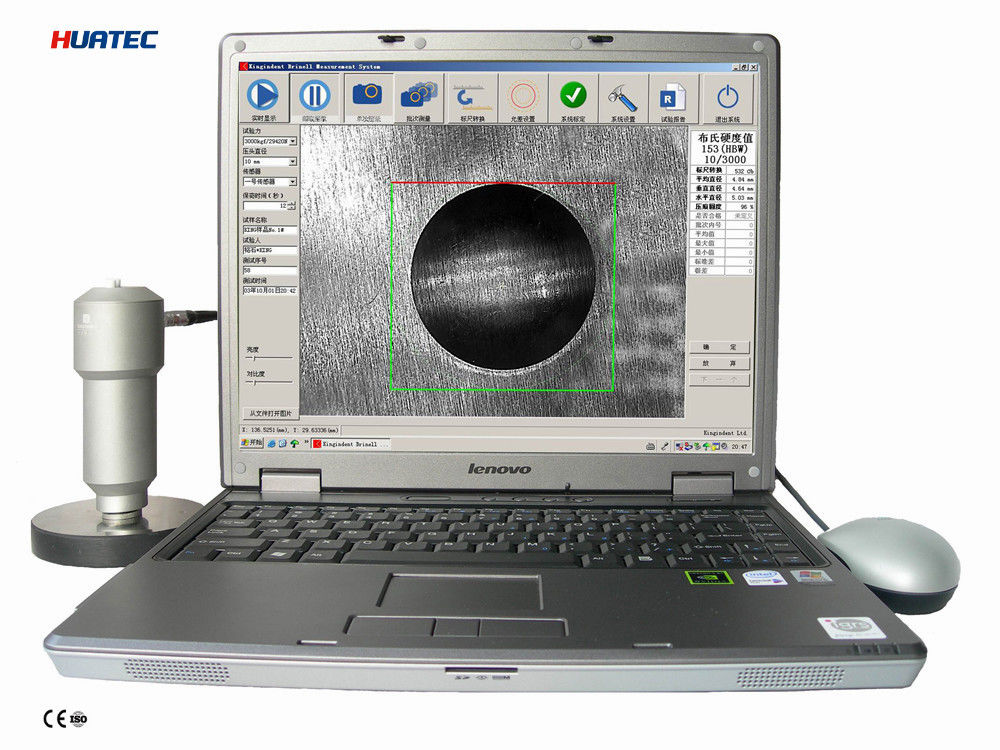

Portable Digital Brinell Indention Tester HBI-10A & 10M with CCD Camera


HUATEC Brinell indention tester can match any kind of Brinell hardness tester. As an independent measurement system, it can measure the Brinell indention accurately, quickly, reliably and movably. It is a new measuring method by using CCD camera to capture the indention image, instead of reading diameter from optical microscope by operator then calculating the test value.
Test parameters include 3000kgf, 1500kgf, 1000kgf, 750kgf, 500kgf, 250kgf, 187.5kgf, 100kgf and 62.5kgf ; Diameter of indenter include 10mm, 5mm, 2.5mm. Measuring range will be 3.18HBW~658HBW.
·Special software supplying simplest operation
·Both single testing and batch testing mode are available
·Tolerance setting, distinguishing and alarming

·Statistics values such as Max, Min, Avg, R and S are available
·Convert test result to other scales, such as HRC, HRB, HRA, HV, σb
· All test results and indention images are saved automatically
· Test report created in Microsoft EXCEL format, can be edit, copy, print as you will
· Software update freely

The standard configuration of the tester:
MODEL HBI-10M, HBI-10A,
· DELL Notebook PC * 1
· No.1 CCD camera * 1
· Power & USB module * 1
· Cables * 2
· Software disc * 1
· Soft dog * 1
· Shockproof suitcase * 1
· User’s guide * 1
The system can match any kinds of PC include notebook type and bench type
HBI-10M is the one by manual operation,HBI-10A is the one by automatic operation
