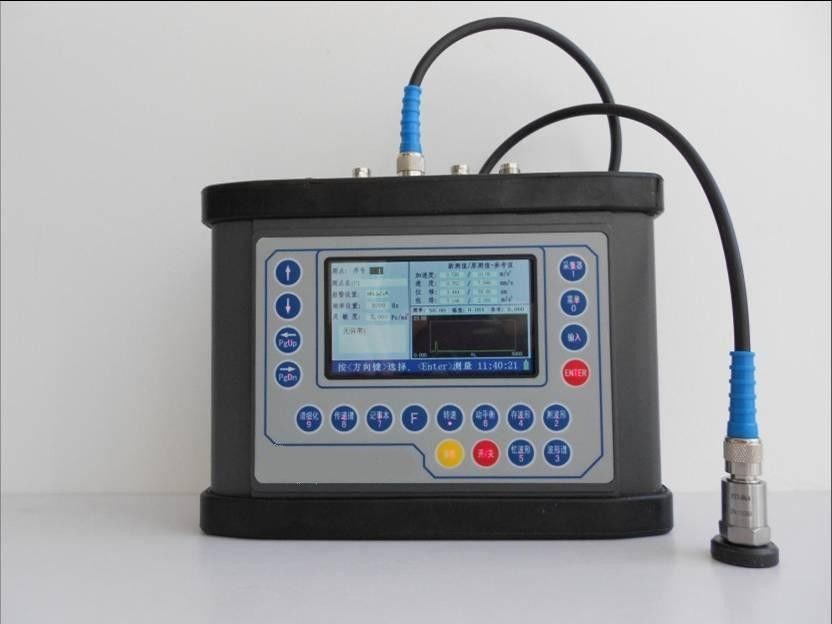

On Site Data Collector Portable Vibration Analyzer Balancer HG601A Dual Channel

Name: On Site Data Collector Portable Vibration Analyzer Balancer HG601A Dual Channel
Brand: HUATEC GROUP CORPORATION
SKU: HG-601A
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG-601A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                vibration analyzer, digital vibration meter


Dual Channel:	1 Or 2 Plane On-site Balancing,Dual-channel Vibration Analyzer	Battery:	Rechargeable Battery, 6.5 Hours Continus Working Time
Storage:	400 Vibration Value Sets & 400 Waveforms Of 1600 Samples	Acceleration:	Acceleration Envelope Demodulation For Rolling Bearing And Gear-box Diagnosis
Spectrum:	1600 Lines FFT Spectrum	Trial:	Trial Weight Estimation

Dual Channel:	1 Or 2 Plane On-site Balancing,Dual-channel Vibration Analyzer
Battery:	Rechargeable Battery, 6.5 Hours Continus Working Time
Storage:	400 Vibration Value Sets & 400 Waveforms Of 1600 Samples
Acceleration:	Acceleration Envelope Demodulation For Rolling Bearing And Gear-box Diagnosis
Spectrum:	1600 Lines FFT Spectrum
Trial:	Trial Weight Estimation

Product Description

On Site Data Collector Portable Vibration Analyzer Balancer HG601A Dual Channel

Features:

• 1 or 2 plane On-site Balancing

• 50 sets storage of balancing data

• Process clarified by vector graph

• Trial weight estimation

• Trial can be removed or remain

• Balancing weight can be decomposed

to 2 required positions

• Rechargeable battery for more

than 6.5 hours continuous operation

• Dual-channel vibration Analyzer

• 1600 lines FFT spectrum

• Spectrum and time waveform display

• Acceleration envelope demodulation

Auto-range or manual-range for impulse vibration measurement

Storage: 400 vibration value sets & 400 waveforms of 1600 samples

HG3.0 software analysis spectrum(only HG-601A can connection)

Chinese or English language operation, 4.3 inch Color display

Specification:

Rotation Speed: 120-30,000 r/min

Input: Accelerometer & Voltage

for velocity or displacement sensors

Measure Acceleration, Velocity, Displacement, Voltage and Acceleration Envelope

Balancing by the method of influence coefficient

Vibration value accuracy 5%

Operating Environment: -30°——95°

Normal temperature sensor Environment:-35°——80°

High temperature sensor Environment:-35°——130°

Frequency response for vibration overall value & Spectrum: 0.5Hz-10kHz

Hanning windowed Spectrum

Measurement Range & Resolution

Acceleration 250m/s2 0.1m/s2

Velocity 200mm/s 0.1mm/s

Displace 5000 μm 1 μm

Envelope 25m/s2 0.1m/s2

Laser tachometer

Size: 210*130*40mm

Weight: 950g(including battery)

HG-601A/ HG603A Pack List

Vibration Data Collector 1

Accelerometer 2

Magnetic Mount 1

Steel Extension Probe 1

Battery Charger 1

Accelerometer Cable 3

USB Communication Cable HG601A) 1

Balancing Module 1

Tacho/Trigger Sensor and cable         1
Reflector Paper set                              1
Quick Start Guide                                1
HG software CD (HG601A)                  1
Certificates of HG-601A/HG-603A and sensors 3
Carrying Case                                                   1
mount base stand for tacho sensor                    1
