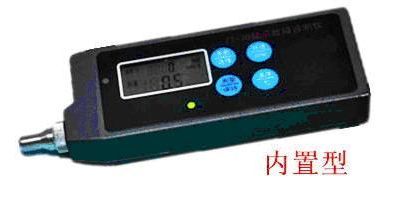

Digital Portable Vibration Calibrator 10HZ - 1KHZ 20 hours HG-500

Name: Digital Portable Vibration Calibrator 10HZ - 1KHZ 20 hours HG-500
Brand: HUATEC GROUP CORPORATION
SKU: HG-500
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG-500

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                portable vibration meter, vibration analyzer


Product Description

Digital Portable Vibration Calibrator 10HZ - 1KHZ 20 hours HG-500

Features:

measure several vibration parameters, display related frequency

measure temperature

measure rotate speed, and display related frequency

measure acceleration

Installed standard ISO10816, directly display health status of tested equipment

LED display

Specifications

1 Parameters:

Acc(unit:m/s2):0.1 to 199.9m/s2

VEL(unit:mm/s):0.1 to199.9 mm/s

DISP(unit:mm): 1 to 2000 µm

Env (unit:Hi-m/s2):0.1 to 25 m/s2

TEP (unit:oC):-20 oC to 200 oC

RPM (unit:rpm/min) 1 to 9999rpm/min

2 Error:

Acc:10Hz~5000Hz, + 5%;

VEL:10Hz~2000Hz, + 5%

DISP:10 Hz~1000Hz, + 5%

Env;3kHz~10kHz 5Hz~2kHz, + 5%

3 Accuracy:±5%±2

4 Power:1pc 3.6V lithium battery, currency:10~40mA

Continuous working time: 20 hours

5 Working condition:0-50℃, humidity:<85%

6 Size:125 x50 x 20 (mm)

7 Weight: 100 gbattery included

Tags:

portable vibration meter,

digital vibration meter,

vibration analyzer
