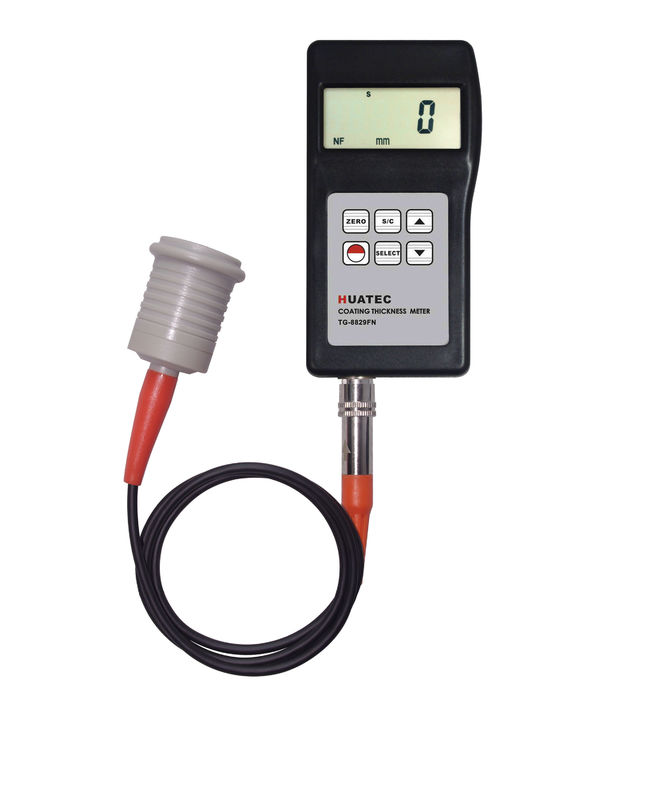

TG8829F 12 mm / 12000micron Coating Thickness Gauge

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG8829F

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price
Product Details
Highlight:

oating thickness tester

,

digital thickness gauge

Measuring Range:
0-12000um
Resolution:
0.1/1
Accuracy:
±1-3%n Or ±2.5um
Battery Indicator:
Low Battery Indicator
Unit:
Metric / Imperial: Convertible
Power Off:
Auto Power Off
Min. Sample Thickness:
0.3mm
Measuring Range:
0-12000um
Resolution:
0.1/1
Accuracy:
±1-3%n Or ±2.5um
Battery Indicator:
Low Battery Indicator
Unit:
Metric / Imperial: Convertible
Power Off:
Auto Power Off
Min. Sample Thickness:
0.3mm
Product Description
12 mm Coating Thickness Gauge TG8829F for non conductive coating layers


TG8829F 12 mm / 12000micron Coating Thickness Gauge 0
Description:
With separate probe(s)
Function: TG
-8829F (ferrous substrate)
Operating principle: magnetic induction
Measuring range:0-12000um/
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 30mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)





Standard Delivery of TG8829F:
Main unit(1250um)                        1
F type probe                                      1
F calibration base set                    1
Calibration foil set                         1set (4 foils)
Carrying case                                   1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C

Customized testing range
