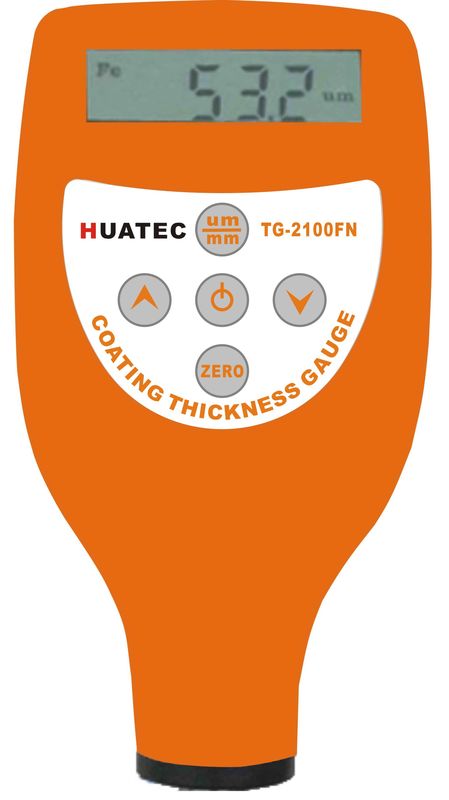

Coating thickness gauge TG-2100 2000 micron (film thickness gauge, thickness gauge, paint thickness gauge)

Description:

With separate probe(s)
Function: TG-2100F (ferrous substrate) TG-2100NF (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:ferrous (F): 0-2000um, nonferrous (NF): : 0-2000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-2000um to 18000um

Application:
1. Coating thickness gauge TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-2100NF can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of coating thickness gauge TG2100FN:
Main unit (2000um)                      1
F type probe                                   1
N type probe                                  1
F calibration base set                  1
N calibration base set                 1
Calibration foil set                        1set (4 foils)
Carrying case                                1
Instruction manual                       1

Optional Accessories of coating thickness gauge TG2100FN:
Cable and software for RS-232C
Customized testing range
