2.207J Concrete Test Hammer

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HTH-225

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                hammer testing concrete, hammer test on concrete


Test Range::	10~60Mpa	Standard Impact Energy::	2.207J(0.225Kgf.m)
Stroke Of Rebound Hammer::	75mm	Friction Of Pointer Slider::	0.5N~0.8N
Sphere Radius Of Rebound Pole:	SR: 25mm±1mm	Average Rebound Value On Steel Anvil Rm::	80±2

Test Range::	10~60Mpa
Standard Impact Energy::	2.207J(0.225Kgf.m)
Stroke Of Rebound Hammer::	75mm
Friction Of Pointer Slider::	0.5N~0.8N
Sphere Radius Of Rebound Pole:	SR: 25mm±1mm
Average Rebound Value On Steel Anvil Rm::	80±2

Product Description

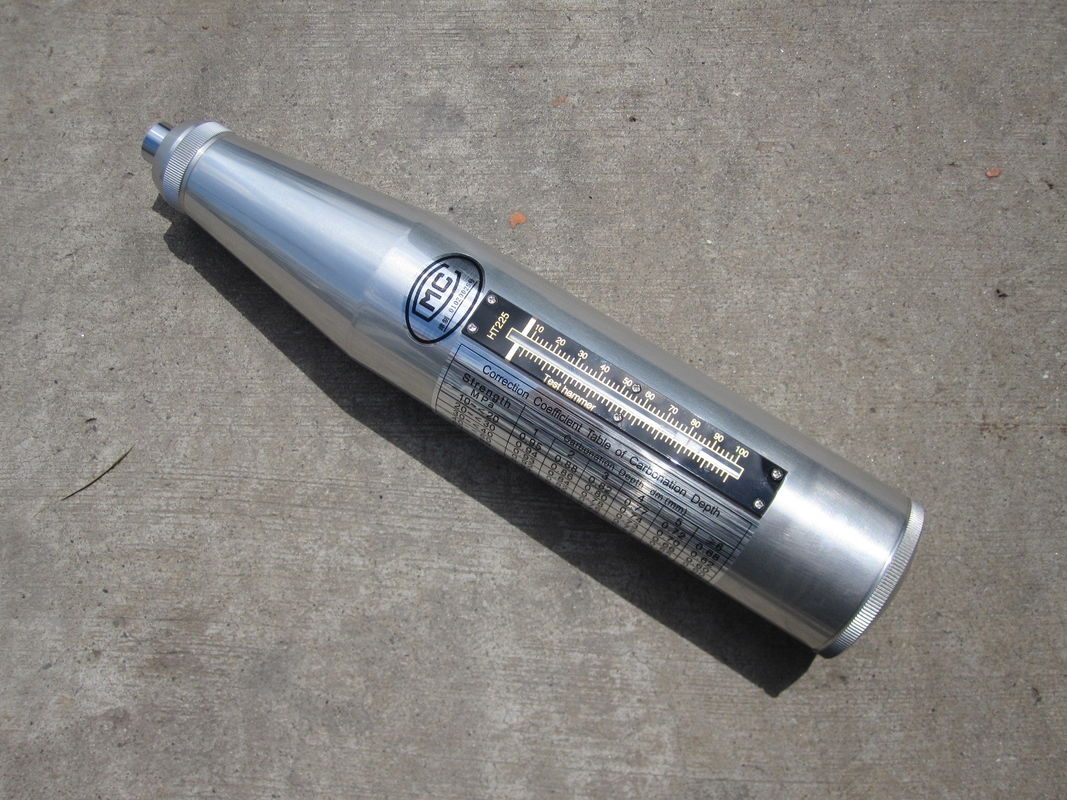

2.207J Concrete Test Hammer

1.Portable, easy to operation;
2.Size: Φ54*278mm
3.Six colours
4.Provide digital type

Brief introduction:

The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2001. HTH-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.

Trait:

1)Center rod is made from imported material, high accuracy and durable resistance.

2)The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.

3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Parameter

Test range: 10~60Mpa

Standard impact energy: 2.207J(0.225Kgf.m)

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.5N~0.8N

Sphere radius of rebound pole SR: 25mm±1mm

Average rebound value on steel anvil Rm: 80±2

Size: Φ54*278mm

Weight: ≈1KG

HTH-225 A same as HTH-225, just added spare parts: Strike tension spring and screw driver.
