Home > products > Portable Hardness Tester > Digital Display Non-Destructive Testing Aluminum Alloy Webster Hardness Tester HW-D20+

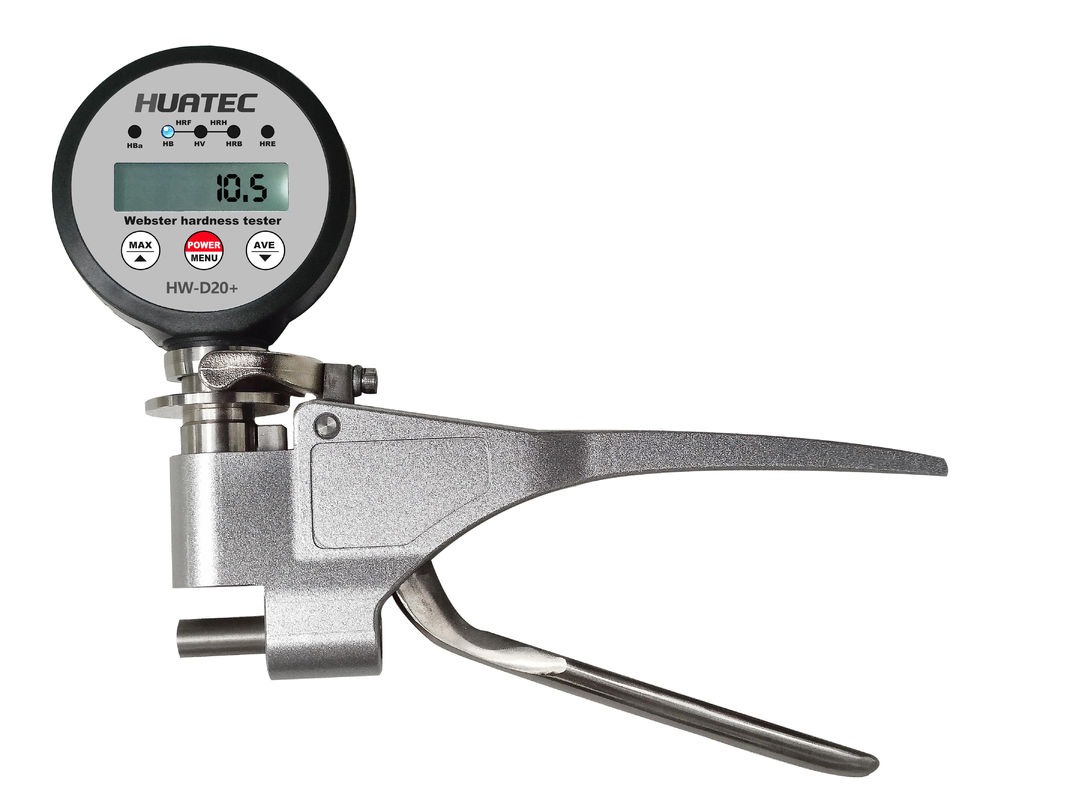

Digital Display Non-Destructive Testing Aluminum Alloy Webster Hardness Tester HW-D20+

Product Details

Place of Origin: China

Brand Name: HUATEC

Certification: CE ISO GOST

Model Number: HW-D20+

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: export standard carton package

Delivery Time: 3 working days

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Material:	Metal	Testing Range:	0-20HW
Accuracy:	0.5HW	Net Weight:	625g
Host Dimension:	22016030mm	Battery:	2x 1.5AAA Battery
Working Condition:	Temperature: 0ºC~50ºC,Humidity:<80%RH	Product Name:	Digital Webster Hardness Tester
Easy Conversion:	Wechsler Hardness Value Can Be Converted Into Vickers, Rockwell, Brinell And Other Hardness Values	Value Conversion Range:	25~110HRE, 58~131HV

Material:	Metal
Testing Range:	0-20HW
Accuracy:	0.5HW
Net Weight:	625g
Host Dimension:	22016030mm
Battery:	2x 1.5AAA Battery
Working Condition:	Temperature: 0ºC~50ºC,Humidity:<80%RH
Product Name:	Digital Webster Hardness Tester
Easy Conversion:	Wechsler Hardness Value Can Be Converted Into Vickers, Rockwell, Brinell And Other Hardness Values
Value Conversion Range:	25~110HRE, 58~131HV

Product Description

Digital Display Non-Destructive Testing Aluminum Alloy Wechsler Hardness Tester HW-D20+

Main Features

*Press needle part: new material, new process manufacturing of press needle, high hardness, long life, good interchangeability

*Handle part: forged material, surface anodized upper handle, beautiful, wear resistant, pollution resistant

*Hardness block: the standard aluminum hardness block is tested by the standard hardness machine

*High quality: fine parts processing, precision machine assembly, strict quality inspection

*Good stability: full degree point stability, correction point stability

*Easy conversion: wechsler hardness value can be converted into Vickers, Rockwell, Brinell and other hardness values.

Application

HW-D20+ Wechsler hardness tester is an instrument that can quickly test the hardness of aluminum alloy in the field

Wechsler hardness tester HW-D20+ is easy to use,one card can, hardness value directly read. Used for rapid detection hardness of aluminum alloy profiles,pipes, plates, aluminum workpieces and other soft metals.

It is especially suitable for fast and non-destructive testing of batch products at the production site, sales site or construction site item by item inspection

Specifications

Testing range	0~20HW
Accuracy	0.5HW
Net weight	625g
Host dimension	22016030mm
Battery supply	2x 1.5AAA battery
Operating condition	Temperature: 0ºC~50ºC,Humidity:<80%RH
Value conversion range	25~110HRE, 58~131HV
Standard Accessories	Standard wechsler HW-D20+
	Spare presser
	Special wrench
	Anvil seat cover
	Small screwdriver
	Hardness block
	Carrying Case
	Operation Manual
	Calibration Certificate
Optional Accessories	Spare presser
Optional Accessories	Wechsler hardness block at various value
