FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector
FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector
FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector
FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector

FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector

Product Details

Place of Origin: China

Brand Name: HUATEC

Certification: CE ISO GOST

Model Number: HAL-3000

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: export standard carton package

Supply Ability: 50 per months

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Material:
ABS
Hardware Bandwidth:
10kHz ~ 400kHz
Number Of Channels:
Dual-channel Synchronous Acquisition
Optional Gain:
20dB 40dB 60dB
Optional Sampling Rate:
2KB 4KB 8KB 32KB
Dual-channel Synchronization:
Below 0.5μs
Filter Range:
10kHz ~ 400kHz
Power Supply:
Built-in Lithium Battery, The Regular Continuous Working Time Is About 8 Hours
Host Normal Operating Temperature Range:
-10~+50℃
Host Weight:
0.8kg
Host Size:
194mm×129.5mm×45mm
Power Adapter:
DC 5V/4A Charging Cable
Data Cable:
MiniUSB Data Cable
Material:
ABS
Hardware Bandwidth:
10kHz ~ 400kHz
Number Of Channels:
Dual-channel Synchronous Acquisition
Optional Gain:
20dB 40dB 60dB
Optional Sampling Rate:
2KB 4KB 8KB 32KB
Dual-channel Synchronization:
Below 0.5μs
Filter Range:
10kHz ~ 400kHz
Power Supply:
Built-in Lithium Battery, The Regular Continuous Working Time Is About 8 Hours
Host Normal Operating Temperature Range:
-10~+50℃
Host Weight:
0.8kg
Host Size:
194mm×129.5mm×45mm
Power Adapter:
DC 5V/4A Charging Cable
Data Cable:
MiniUSB Data Cable
Product Description

FFT Spectrum RMS ASL Dual-Channel Wave Acoustic Emission Valve Leakage Detector

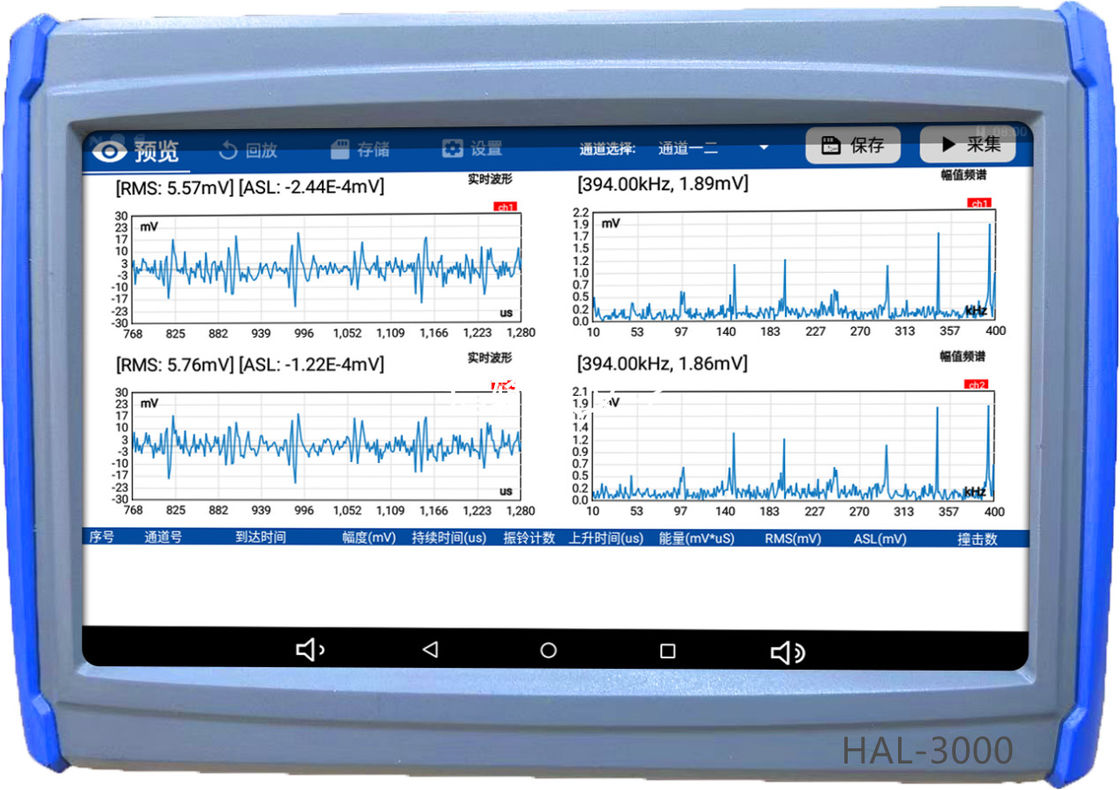

HUATEC HAL-3000 Acoustic Emission Valve (Pipeline) Leak Detector is an acoustic emission detector with dual-channel synchronous acquisition function. It is easy to operate,has high real-time performance and has strong battery life. It is suitable for industrial applications.



Product Features

  • Simple operation, high real-time performance, strong battery life
  • With dual-channel waveform detection, each channel will display real-time waveform and amplitude spectrum
  • There are three different sampling rate and gain options, and there are four optional sampling points
  • FFT spectrum analysis function, allowing you to view data FFT spectrum information at any time
  • Built-in 10000mA lithium battery, the normal use time is 8 hours, and it can be charged by power supply
  • It has a supporting PC-side software for displaying the waveform of the stored waveform data, and can print the word document corresponding to the waveform diagram
  • Using RMS and ASL as leak detection parameters, the alarm value can be calibrated. If the calibration value is exceeded, an alarm prompt will be given
  • There is 64GB storage space, with manual and automatic data storage functions, and data information is stored according to the timestamp as the file name
  • Frequency band filtering can be selected based on actual scenarios



Basic Parameters

Hardware bandwidth 10kHz ~ 400kHz
Number of channels Dual-channel synchronous acquisition
Optional gain 20dB 40dB 60dB
Optional sampling rate 500kHz 1MHz 2MHz
Optional sampling points 2KB 4KB 8KB 32KB
Dual-channel synchronization Below 0.5μs
Filter range 10kHz ~ 400kHz
Power supply Built-in lithium battery, the regular continuous working time is about 8 hours
Host normal operating temperature range -10~+50℃
Host storage temperature range 0-+40℃
Host weight 0.8kg
Host dimensions 194mm×129.5mm×45mm
Power adapter DC 5V/4A charging Cable
Data cable miniUSB data cable
Probe PN150_M



Standard configuration

NO. Name Quantity Remark
1 Host HAL-3000 1
2 Mini USB data cable 1
3 DC 5V/4A charging cable 1
4 Manual 1
5 Lemo 00- Microdot probe line (1m) 2
6 Memory disk 1
7 Packing box 1
8 Coupling agent 1
9 Probe (PN150_M) 2
