Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester

Product Details

Place of Origin: China

Brand Name: HUATEC

Certification: CE ISO

Model Number: HG-219

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: export standard package

Supply Ability: 100 per months

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Material:	Engineered PVC	EXplosion Proof:	Explosion-proof Ex Ia IIB T6 Ga/ Dust Proof Ex Ia III B T20080℃ Da/ Protection IP66
Detection Parameters:	Acceleration, Speed, Displacement, High Frequency Acceleration And Temperature Five Parameters	Auxiliary Functions:	Auscultation, Lighting
Operating Temperaturement:	0℃ ~ 50℃, Relative Humidity: <85%	Size:	180 X 50x 25mm
Weight:	100 G (including Rechargeable Battery)	Product Name:	Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester

Material:	Engineered PVC
EXplosion Proof:	Explosion-proof Ex Ia IIB T6 Ga/ Dust Proof Ex Ia III B T20080℃ Da/ Protection IP66
Detection Parameters:	Acceleration, Speed, Displacement, High Frequency Acceleration And Temperature Five Parameters
Auxiliary Functions:	Auscultation, Lighting
Operating Temperaturement:	0℃ ~ 50℃, Relative Humidity: <85%
Size:	180 X 50x 25mm
Weight:	100 G (including Rechargeable Battery)
Product Name:	Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester

Product Description

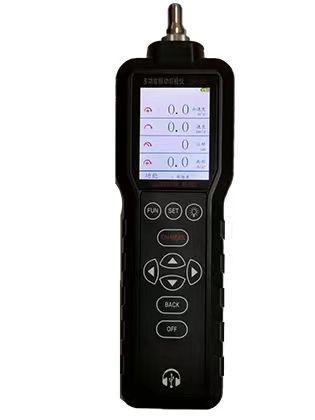

Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester

Multi-purpose label: vibration measurement, temperature measurement, auscultation, lighting

*Certificate: Explosion-proof Ex ia IIB T6 Ga/ Dust proof Ex ia III B T20080℃ Da/ Protection IP66

*Detection parameters: acceleration, speed, displacement, high frequency acceleration and temperature five parameters

*Auxiliary functions: auscultation, lighting

*Rugged housing - engineered PVC

HG-219 is a multi-purpose, multi-functional industrial detector. Features: multi-parameter vibration value, temperature measurement, electronic assisted auscultation, frequency analysis, lighting in one. Automatic data retention, automatic storage, automatic shutdown, easy to operate. It is suitable for the rapid condition detection of bearings, gears and reciprocating machinery of rotating machinery and equipment in industry. The measured values conform to the intensity standard of rotating machinery. It is widely used in machinery manufacturing, electric power chemical industry and other fields.

Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester 0

Technical parameters

Name	Measuring range	Frequency range	precision
Peak acceleration	0.1—199.9 m/s2	10-5KHz	±5%
Velocity effective value	0.1—199.9 mm/s	10-1000Hz	±5%
Displacement Peak value	1—1999 um	10-500Hz	±5%
Envelope effective value	0.1—19.9 m/s2	10-5KHz	±5%
Temperature	-20—180 ℃		±1%

Standard delivery

Item/Model	HG-219 built-in	HG-219 External
Host machine	√	√
Acceleration sensor	built-in	√
Magnetic holder	－	√
Long rod	√	－
Short probe	√	－
Sensor conductor	－	√
Rechargeable lithium battery(3.6V)	√	√
USB charging/communication cable	√	√
Charger	√	√
