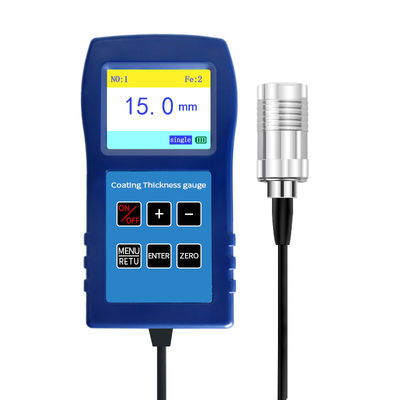

13mm enamel plastic spraying, coatings anti-corrosion fireproof coating thickness gauge TG-6008

General introduction

TG-6008 coating thickness gauge is a large-scale coating thickness gauge, mainly used to measure the thickness of magnetic metal material surface coating object professional non-destructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) (galvanized, chromium, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.), which is very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, with a range of up to 13MM, application field: widely used in coating industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields

Instrument features

Large range: 100-15000 μm (0.1-13mm)

Simple operation, fast test speed, good sensitivity and high measurement accuracy

Using alloy probe, wear-resistant and pressure-resistant, durable and accurate

There are two measurement methods: continuous measurement and single measurement

There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).

Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored

Store data view delete function

Three calibration methods: zero calibration, two-point calibration, and multi-point calibration

Upper and lower limit alarm function (can be set in single measurement mode)

The operation process is marked by a beep (in single measurement mode).

Automatic identification of ferrous and non-ferrous substrates

Metric conversion μm/Mil

Sunshine mode (used in strong light)

Chinese and English bilingual version

2.3-Inch large color screen with large font size display

Manual/automatic shutdown function

Bluetooth synchronous data transmission function (customized)

Technical parameters

A. Measuring range: 100-13000μm (0.1-13mm)

B. Use environment: temperature: 0 ℃ -60 ℃, humidity: 20% RH - 90% RH, use in a strong magnetic field environment

C. The thinnest substrate: 1mm

D. Measurement accuracy: ± 3% H + 2μm

E. Resolution: 0.1μm/1μm /0.01mm

F, the minimum substrate area is about 32mm

G. Minimum radius of curvature: convex 10mm; concave 16mm

H. Dimensions: 130 (L) × 70 (W) × 25 (H) mm

I. Weight: 260g

J. Power supply: three (No. 7) alkaline batteries

Standard configuration

1 Host TG-6008 √

2 Standard tablets √

3 Iron matrix √

4 Dry batteries AAA 3pcs √

5 Instruction manual √

6 Certificate of conformity √

7 Cleaning cloth √

Optional function

Bluetooth transmission function, customized
