Product Description:
The Ultrasonic Thickness Gauge is designed to measure the thickness of metal and non-metal materials. It is widely used in the industrial corrosion monitoring, production quality control and thickness measurement applications. The device is equipped with a high resolution LCD display, providing convenient operation and clear data reading. It provides high accuracy measurements with resolution of 0.1mm, 0.01mm, and 0.001mm. The probe type of the gauge can be Single Crystal Probe or Double Crystal Probe. The sound velocity range of the gauge is 400-19999m/s, and it has four detection modes, including Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG) and Full Wave (FULL). Moreover, the gauge is powered by 4*1.5V AA battery, which can last for a long time. The Ultrasonic Thickness Gauge is the ideal choice for corrosion thickness measurements and quality control in various industries.
Features:
- Product Name: Ultrasonic Thickness Gauge
- Power Supply: 4*1.5V AA Battery
- Certification: CE
- Display: 3.5 "QVGA (320 × 240) Color TFT-LCD Screen
- Weight: 0.5kg
- Size: 204 X 100 X 36 (mm)
- Function: Wall Thickness Measurement
Applications:
The HUATEC TG-5700 ultrasonic thickness gauge is a wall thickness gauge with a wide range of applications. It is designed with features such as accuracy, frequency, resolution, interface, and weight. It is an ideal tool for precision measurement of wall thickness, with accuracy of up to +/-0.001mm and measurement frequency of 4Hz, 8Hz, and 16Hz. It also features a resolution of 0.1mm, 0.01mm, and 0.001mm, as well as USB interface and a lightweight weight of 0.5kg. This ultrasonic thickness tester is ideal for use in a variety of industries, such as automotive, aerospace, and manufacturing. It is a reliable and durable tool for measuring wall thickness and ensuring accuracy and precision.
Technical Parameters:
| 参数 |
详情 |
| Probe Connector |
LEMO |
| Working Temperature |
-10°C To +50°C |
| Power Supply |
4*1.5V AA Battery |
| Size |
204 X 100 X 36 (mm) |
| Display |
3.5 "QVGA (320 × 240) Color TFT-LCD Screen |
| Sound velocity range |
400-19999m/s |
| Resolution |
0.1mm,0.01mm,0.001mm |
| Interface |
USB |
| Measurement mode |
(1) MB-E: The Measurement Mode Based On The Transit Time From The Initial Echo To The First Bottom Echo;
(2) E-E: Penetration Coating Measurement Mode, The Arbitrary Em–En Echo Is Optional;
(3) ME-E: Multiple Echo Measurement Mode;
(4) THIN: Thin Wall Measurement Mode; |
| Detection mode |
Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL) |
Customization:

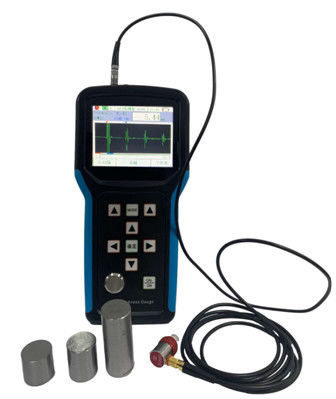

Ultrasonic Thickness Gauge - HUATEC TG-5700
This ultrasonic thickness gauge is a high precision corrosion thickness gauge used to measure the thickness of various materials. It is a reliable and accurate solution for measuring the thickness of objects from 0.15mm – 1800mm with an accuracy of +/-0.001mm.
The HUATEC TG-5700 ultrasonic thickness gauge features 4 measurement modes: (1) MB-E: The Measurement Mode Based On The Transit Time From The Initial Echo To The First Bottom Echo; (2) E-E: Penetration Coating Measurement Mode, The Arbitrary Em–En Echo Is Optional; (3) ME-E: Multiple Echo Measurement Mode; (4) THIN: Thin Wall Measurement Mode.
This corrosion thickness gauge is also compact and lightweight, measuring 204 X 100 X 36 (mm). It also comes with a LEMO probe connector.
If you are looking for an ultrasonic thickness tester, the HUATEC TG-5700 ultrasonic thickness gauge is the perfect solution for your needs.
Support and Services:
Ultrasonic Thickness Gauge Technical Support and Service
We provide technical support and service for Ultrasonic Thickness Gauge. Our experts are available to help with setup, troubleshooting, and maintenance of your Ultrasonic Thickness Gauge.
- Installation and setup
- Troubleshooting and repair
- Maintenance and calibration
- Product training and consultation
Packing and Shipping:
The Ultrasonic Thickness Gauge is packaged and shipped with the following:
- User Manual
- Calibration Certificate
- Carrying Case
- Ultrasonic Probe
- Power Supply
- Batteries
- Transducer Cable
FAQ:
Q1: What is Ultrasonic Thickness Gauge?
A1: Ultrasonic Thickness Gauge is a device produced by HUATEC, model number TG-5700, which is made in China. The device is used to measure the thickness of materials such as metals, plastics, and ceramics.
Q2: What materials can Ultrasonic Thickness Gauge measure?
A2: Ultrasonic Thickness Gauge can measure the thickness of materials such as metals, plastics, and ceramics.
Q3: What are the features of Ultrasonic Thickness Gauge?
A3: Ultrasonic Thickness Gauge produced by HUATEC, model number TG-5700, has features such as high accuracy, portability, and long battery life.
Q4: What is the measuring range of Ultrasonic Thickness Gauge?
A4: The measuring range of Ultrasonic Thickness Gauge is between 0.75mm-300mm.
Q5: Is Ultrasonic Thickness Gauge water-resistant?
A5: Yes, Ultrasonic Thickness Gauge produced by HUATEC, model number TG-5700, is water-resistant.
