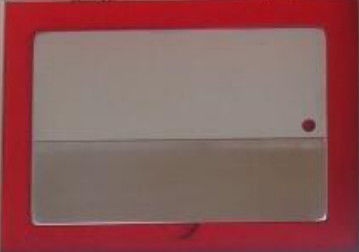

B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels
B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels
B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels
B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels

B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: Type B5

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

chrome plating penetrant testing

,

penetrant testing dye panels

Material:
Stainless Steel With Chrome Plating
Color:
Silver
Name:
Type II Test Specimen
Standards:
ISO 3452-3:2013（E）
Product Name:
Dye Penetrant Inspection
Standard:
JIS Z 2343-3:2001
Stanard:
GB/T18851.3
Material:
Stainless Steel With Chrome Plating
Color:
Silver
Name:
Type II Test Specimen
Standards:
ISO 3452-3:2013（E）
Product Name:
Dye Penetrant Inspection
Standard:
JIS Z 2343-3:2001
Stanard:
GB/T18851.3
Product Description



B5 AS2083/2005, BS2704/1978/1983 Chrome Plating Dye Penetrant Test Panels



Material: Stainless steel with chrome plating





Specification

 All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material: Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth 100µm
Width (target value) 0.5µm


Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled.


Traceability Calibration standards used are traceable to international standards







































Standard delivery:

B5 dye penetration block 1 set

Calibration certificate 1 pc

Case 1 pc
