Chrome Plating AS2083/2005, BS2704/1978/1983 Dye Penetrant Inspection Test Block

Brand Name:	HUATEC
Model Number:	YM-B3
MOQ:	1pcs
Packaging Details:	Standard export package
Payment Terms:	T/T, Paypal, Western Union

Detail Information

Product Description

ratings& Reviews

Detail Information

Place of Origin:

Beijing

Certification:

ISO, CE, GOST

Material:

Chrome Plating

Color:

Silver

Name:

Test Specimen

Standards:

JB/T6064-2006、NB/T47013.5-2015

Product Name:

Dye Penetrant Inspection

Base Material:

Stainless Steel

Supply Ability:

500pcs per month

Highlight:

Chrome Plating Block Testing

Block Testing Chrome Plating

JB/T6064-2006 Block Testing

Product Description

Chrome Plating AS2083/2005, BS2704/1978/1983 Dye Penetrant Inspection Test Block

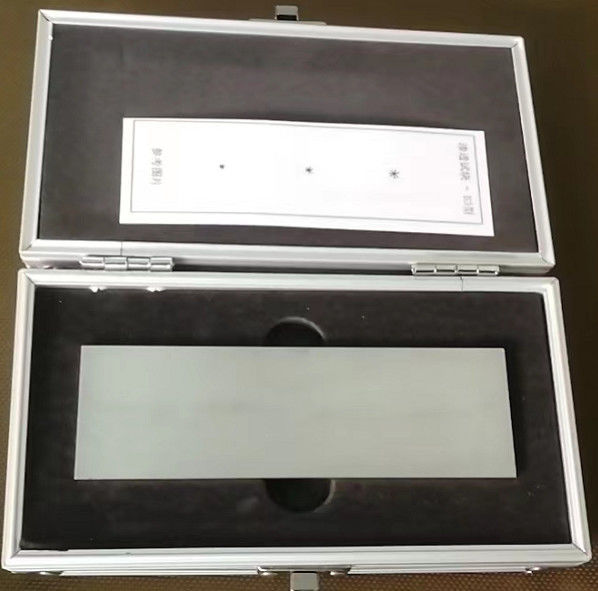

A test block with the size of 130mm×40mm×4mm and the material of 0Cr18Ni9Ti or other stainless steel materials was chromium plated on one side, and three radial crack areas were formed by applying different loads on the back of the block by Brinell hardness method. The location numbers were 1, 2 and 3 in order of size. The position, spacing and other requirements shall be in accordance with the relevant provisions of Type B test blocks in JB/T 6064 -- 1992. The crack sizes correspond to crack location numbers 2, 3 and 4 on JB/T 6064 -- 1992 type B test blocks.

The chrome plating test block is mainly used to check the sensitivity of the penetrant detection agent system and the correctness of the operation process.

If it is found that the test block is blocked or the sensitivity is reduced, it must be repaired or replaced in time.

The test block should be thoroughly cleaned with acetone after use. After cleaning, the sample is stored in an airtight container containing a mixture of acetone and anhydrous alcohol (mixing ratio by volume: 1∶1) or by other effective methods.

Model:YM-B3

All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled

Material standard:according to ISO 10474-3.1.B,JIS G 0415-3.1.B

Depth:100µm

Width target value:0.5µm

Test standard:ISO 3452-3:1998(E),JB/T6064

Standard delivery:

YM-B block 1 set

Calibration certificate 1 pc

Case 1 pc

Specification	All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material:	Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth	100µm
Width (target value)	0.5µm
	Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled.
Traceablity	Calibration standards used are traceable to international standards
