Auto Calibration Ultrasound Flaw Detector IP65 Standard

APP 120dB 2000Hz Frequency 20MHz DAC AVG DGS AWS B Scan Auto Calibration Ultrasound Flaw Detectordt Equipment

Top features

★ User friendly dialog interactive helps operations like Calibration, making curves, etc.

★ All tools you need: DAC, AVG, TCG AWS, etc.

★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.

★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

★ Can use probe frequency 20M perfectly .

★ IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.

★ Battery lasts 15 hours for one charge.

                             Main interface

                                      Testing Report


                                           Menu

                                 Making DAC

                                   Coded echo

                                    Standards optional

                                      AVG SET

                                   Color Bscan (optional)

                                  Report list                                                                                  APP software (optional)


Specifications

Range:0-10000 mm ,at steel velocity

Material Velocity:100～20000 m/s

Pulse Repetition Frequency:10-2000Hz

Dynamic range:≥38dB

Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )

Resolving Power:>40dB (5P14)

Sensitivity Leavings:>68dB

Reject (suppression): 0 to 80% full screen height

500 independence setup, any criterion can be input freely, we can work in the scene without test block；

Big memory of 1000 A graph

Test Modes: Pulse echo, dual element and thru-transmission

Probe Types: Single Straight, Single Angle, Dual Straight, Dual Angle,Through,Creeping,Surface

Gate Monitors: Two independent gates controllable over entire sweep range

Units: Inch or millimeter

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh

15 hours nominal operating time depending on display brightness

4 hours typical recharge time

H×W×D(mm):250×165×55 (mm)

Weight :1.2kg

Operating Temperature: -10℃ to 50℃

Storage Temperature: -30℃ to 50℃

Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable

Rectification: Positive half wave, negative half wave, full wave, RF System

Bandwidth (amplifier bandpass ): 0.2 to 25 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

Transducer Connections: BNC or LEMO


Functions

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)

Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )

Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated

Connecting U-Disk,the unit can get unlimited memory

There are 15 standards of in the unit

Blue tooth connection to mobile device to generate and print detection reports on-site.　AWS D1.1

Curved Surface Correction feature

Crack Height Measure function

Magnify gate:spreading of the gate range over the entire screen width

Auto-gain function

Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan

display

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results

Scan Freeze:Display freeze holds waveform and sound path data

Alarm:Beep and LED

Real Time Clock

Fill echo

Capture mark

Echo color within the Gate


Standard Package

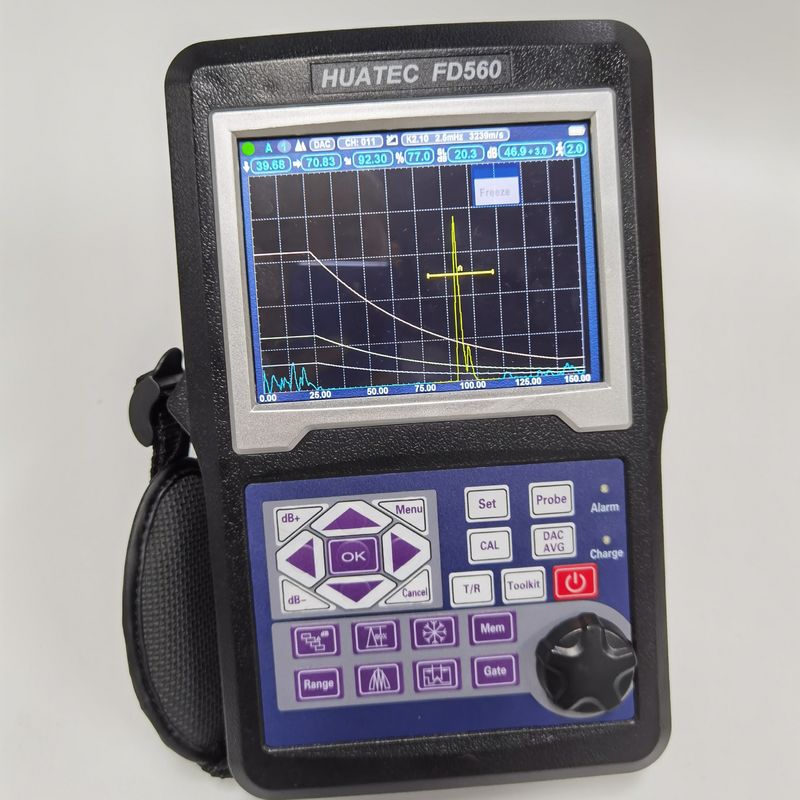

Portable Ultrasonic Flaw Detector FD560 1
Straight Beam Transducer (2.5 MHz, Φ20) 1
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) 1
Connect Cable for the transducer (BNC-LEMO 00,or optional LEMO 01-LEMO 00) 1
Rechargeable Li-Ion Battery Package, 8 amp hour 1
Power supply/charger unit 1
Operating Manual in English 1


Optional Accessories
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.

App Software
Strap

Blue tooth
