Iso2372 Handheld Vibration Meters Piezoelectric Vibration Sensor Acceleration Velocity Displacement Hg-6500bn

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG-6500BN

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                iso2372 handheld vibration meters, piezoelectric vibration sensor handheld vibration meters, acceleration velocity displacement handheld vibration tester


Sensor:	Shear Type Acceleration Sensor	RMS Testing:	True RMS
Vibration Measurement Range:	Displacement: 0.001 To 1.999mm (peak - Peak), Speed: 0.1 To 199.9mm / S (RMS), Acceleration: 0.1 ~ 199.9m/s2 (peak)	Frequency Range:	10Hz ~ 10KHz

Sensor:	Shear Type Acceleration Sensor
RMS Testing:	True RMS
Vibration Measurement Range:	Displacement: 0.001 To 1.999mm (peak - Peak), Speed: 0.1 To 199.9mm / S (RMS), Acceleration: 0.1 ~ 199.9m/s2 (peak)
Frequency Range:	10Hz ~ 10KHz

Product Description

ISO2372 Piezoelectric Vibration Sensor Acceleration Velocity Displacement Vibration Meters Handheld HG-6500BN

Description:

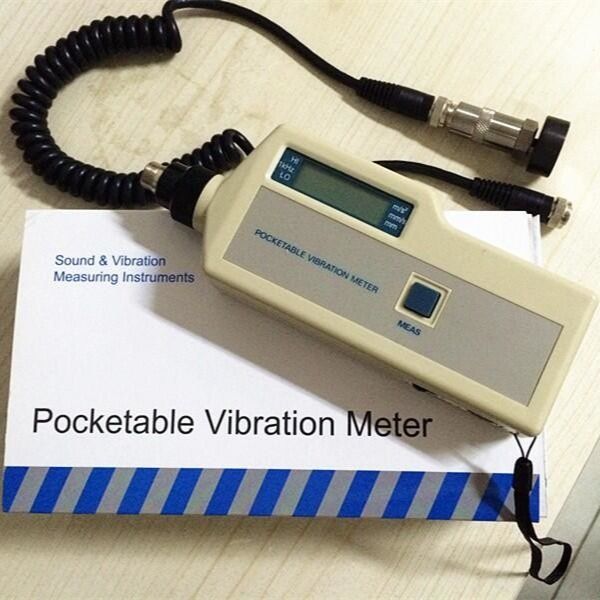

HG-6500BN Pocket vibration (temperature) instrument with separate shear accelerometer, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration measurement.

In the bearing housing using the measured data, or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).

Specifications
Sensors: one rotary shear accelerometer
Measuring Range:

Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)

Accuracy: 5% ± 2 vibration words
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained

Power off: Automaticly shutdown
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g

HG-6500 series model guide:

Model	Low frequency and temperature	Function	Frequency range
HG-6500AN	Standard (I)	Acceleration, Velocity, Displacement	10Hz ~ 10KHz
HG-6500AL	Low frequency (I)	Acceleration, Velocity, Displacement	5Hz ~ 10KHz
HG-6500ANC	Vibration and temperature(I)	Acceleration, Velocity, Displacement, Temperature	10Hz ~ 10KHz
HG-6500ALC	Low frequency and temperature(I)	Acceleration, Velocity, Displacement, Temperature	5Hz ~ 10KHz
HG-6500BN	Standard	Acceleration, Velocity, Displacement	10Hz ~ 10KHz
HG-6500BL	Low frequency	Acceleration, Velocity, Displacement	5Hz ~ 10KHz
HG-6500BNC	Vibration and temperature	Acceleration, Velocity, Displacement, Temperature	10Hz ~ 10KHz
HG-6500BLC	Low frequency and temperature	Acceleration, Velocity, Displacement, Temperature	5Hz ~ 10KHz
