xProduct Details
| Principle | Magnetic Induction (F) And Eddy Current (N) | Measurement Mode | Single And Continuous |
|---|---|---|---|
| USB Output | Optional | Bluetooth | Optional |
| Highlight | oating thickness tester,coating thickness meter |
||
Product Description

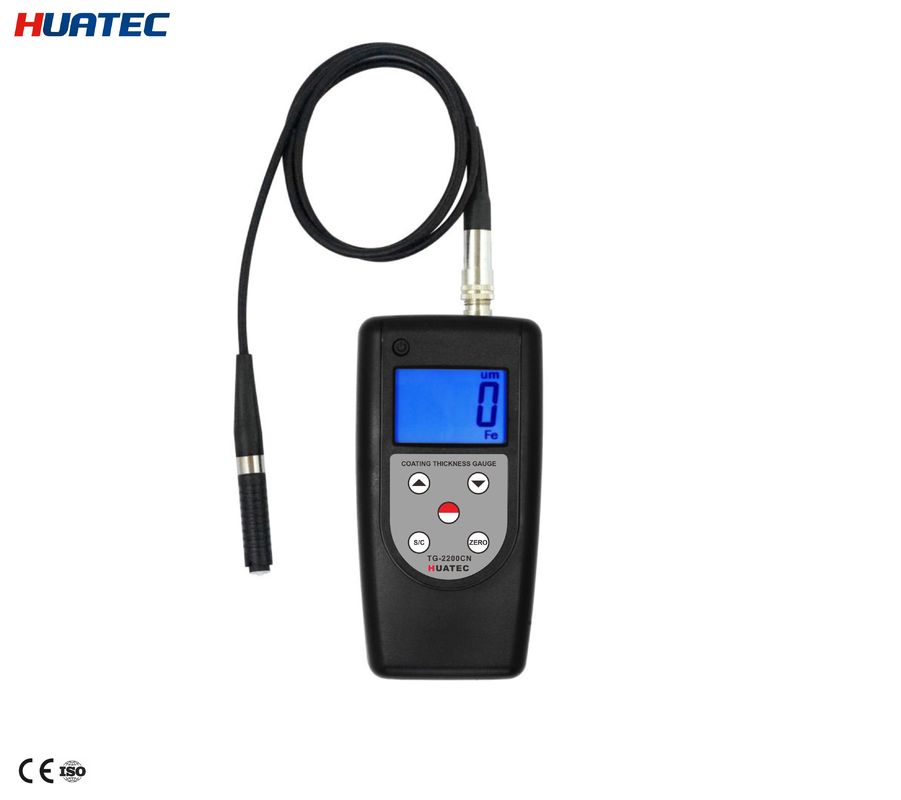

Digital Coating Painting Thickness Gauge Magnetic With Data Memory Film Thickness Meter
Film Thickness Meter Introduction
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
Film Thickness Meter Features
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Film Thickness Meter Specifications
|
Operating Principle |
Magnetic Induction / Eddy Current (F / NF) |
|
Measuring Range |
0~2000 um / 0~80 mil |
|
Resolution |
0.1 um / 1 um |
|
Min. Radius Workpiece |
F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
|
Min. Measuring Area |
6 mm |
|
Min. Sample Thickness |
0.3 mm |
|
Accuracy |
± 1~3%n or ± 2.5 um |
|
Auto Power Off |
Auto |
|
Metric / Imperial |
Convertible |
|
Battery Indicator |
Low Battery Indicator |
|
Operating Conditions |
Temp. 0~40 °C, Humidity: 10~90 %RH |
|
Power Supply |
4 x 1.5 V AAA (UM-4) Battery |
|
Dimensions |
140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
|
Weight |
215 g (Not Including Batteries) |
Standard Accessories:
1. Film Thickness Meter Main Unit
2. Probe (F Type & NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
7. Testing report
Optional accessories:
- USB, RS-232C data cable with software
- Bluetooth data out put with software
- 90 degrees angle probe
