Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument

  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
  • Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number TG-8828
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

oating thickness tester

,

digital thickness gauge
Leave a Message
Product Description

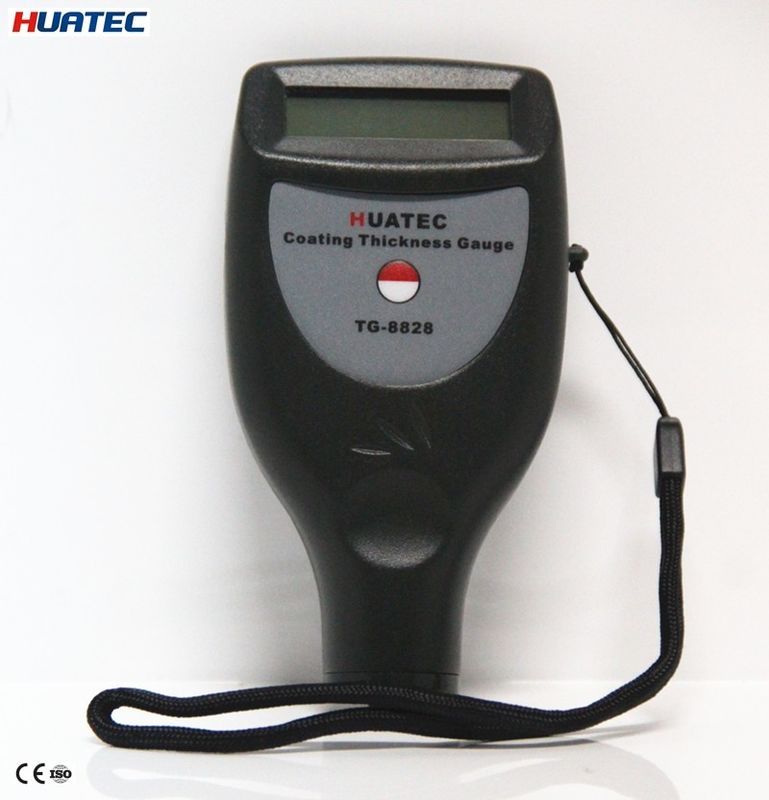

Dry Film Coating Thickness Gauge Elecronic TG8828 Paint Thickness Measuring Instrument


Paint Thickness Measuring Instrument Description:
In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolutio: 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Standard Delivery of Paint Thickness Measuring Instrument TG8828FN:
Main unit(1250um)                        1
F type probe                                  1
N type probe                                 1
F calibration base set                    1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                        1

Optional Accessories of coating thickness gauge TG8828FN:
Cable and software for RS-232C and or USB
Customized testing range
Tags:

digital thickness gauge

coating thickness meter

oating thickness tester
