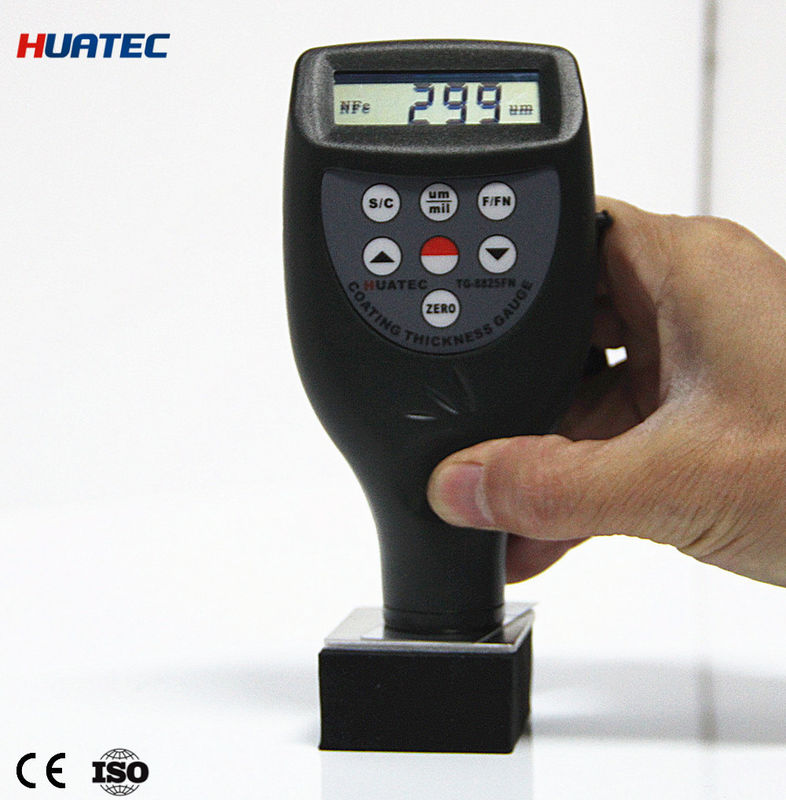

Magnetic Induction 1250um Coating Thickness Gauge TG8825paint Gauge Meter

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG8825

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                oating thickness tester, coating thickness meter


Product Description

Coating Thickness Gauge TG8825(elecronic thickness gauge, paint thickness gauge, coating thickness, NDT Instruments, paint thickness, thickness gauge, coating inspection, paint inspection)

Magnetic Induction 1250um Coating Thickness Gauge TG8825paint Gauge Meter

Description:

Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
Measuring principle: magnetic induction & eddy current
Measurement range:0～1250um in built probe (integrated probe)
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1～3%n or ±3um
Probe type recognition: Manual (For TG-8825FN)
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4x1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm

Application:
1. Coating thickness gauge TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of Paint Thickness Gauge TG8825FN:
Main unit(1250um)                        1
F type probe                                  1
N type probe                                 1
F calibration base set                   1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                        1

Optional Accessories
Cable and software for RS-232C and or USB
