0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester

0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG8826

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

oating thickness tester

,

coating thickness meter

Product Description

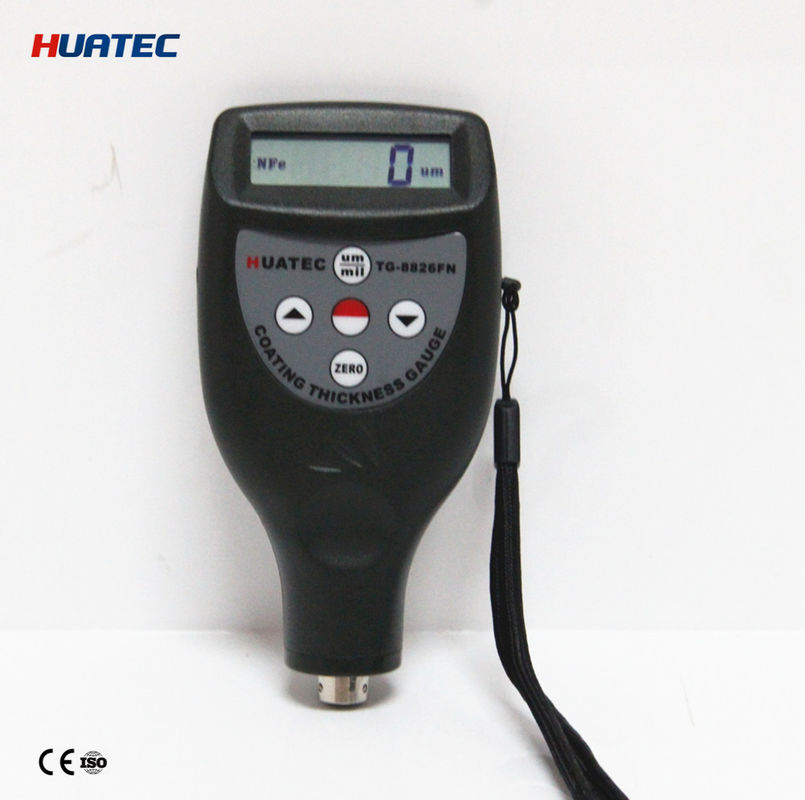

0.3 Mm Coating Thickness Gauge TG8826 Paint Coating Thickness Tester

Description:
With separate probe(s)
Function: TG-8826F (ferrous substrate) TG-8826N (non ferrous substrate) TG-8826FN (2 in 1, F & NF type)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-8826F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-8826N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)




Standard Delivery of TG8826FN:
Main unit(1250um)                        1
F type probe                                 1
N type probe                                 1
F calibration base set                   1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                               1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C and USB

Customized testing range
