Product Details
Material Aluminum 7075, Carbon Steel, Stainless Steel Standard ISO2400-1972 ISO2400 2012
Highlight

digital ultrasonic flaw detector

,

ultrasonic flaw detection
Leave a Message
Product Description

ultrasonic test block,Calibration Blocks, Test Blocks, A2 UT Blocks, standard test blocks iiw,BS2704

Standard ISO2400-1972 ISO2400 2012



  Calibration Blocks/Standard Test Blocks/ UT Blocks

Order Code
Shape
(Not to Scale)
Type
Description
/Application
Standard Made To
Material Size
V1

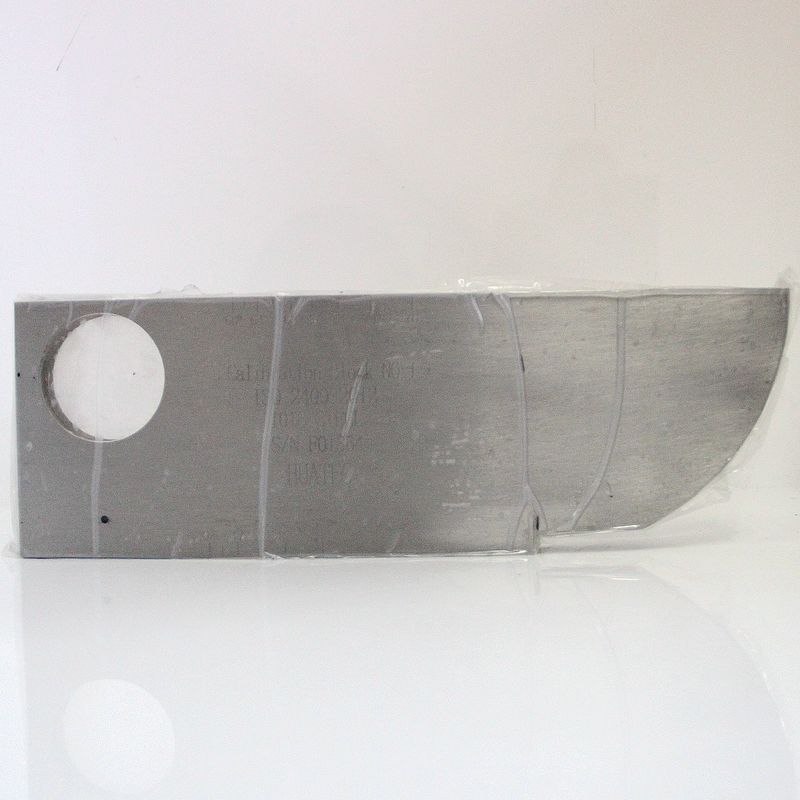

Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 0
A2
(BS)

IIW V-1
I.I.W Calibration Standard. Calibration of Shear and compression wave probes. Checking beam angle, emergent point and resolution. Calibration of time base and gain settings.
B.S. 2704
DIN 54120
IIW (International Institute of Welding)
ISO2400 2012
ISO2400-1972
Steel
25x100x300mm
V1/50
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 1
A2
(BS)



IIW V2
Generally as V1. Thicker block minimises side wall echoes.
BS 2704
Steel
50x100x300mm
V2
(Specify hole diameter)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 2
A4
(BS)
Small calibration block for site checking of shear wave probes, time base and gain. 1.5mm or 5mm diameter hole target
BS 2704
IOW (Institute of Welding)
ISO7963
Steel
12.5x43x75mm
V2/20
(Specify hole diameter)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 3
A4
(BS)
Generally as V2. Thicker block eliminates side wall echoes. 1.5mm or 5mm diameter hole target.
BS 2704
ISO7963
Steel
20x43x75mm
BCB
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 4
A5
(BS)
Beam Calibration Block. Beam profile and resolution checks for shear wave probes. Sensitivity checks for shear and compression probes. 9 off 1.5mm holes.
BS 2704
Steel
50x75x305mm
A6
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 5
A6
(BS)
Evaluating dominant frequency, pulse, length, dead zone and resolving power for shear and compression probes as BS4331 part 3, 1974.
BS 2704
Steel
25x50x150mm
RTB
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 6
A7
(BS)
Checking shear wave probe resolution as BS4331 part 3, 1974. Steps of 2, 3, 4 and 5mm.
BS 2704
Steel
74mm radius
75mm thick
LSW
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 7
SPECIAL
Ladder step wedge for timebase calibration with thickness measuring compression probes. 8 steps from 1mm to 8mm.
Tolerance of +0.000mm-
-0.040mm
Steel
8x15x120mm
LSW/M
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 8
SPECIAL
Generally as LSW with 15mm diameter steel inserts mounted in plastic. 8 steps from 1mm to 8mm.
Tolerance of +0.000mm-
-0.040mm
Steel inserts
Plastic body
10x20x140mm
CSW
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 9
SPECIAL
Curved Step wedge for timebase calibration of thickness measuring probes. 5 steps - 2, 4, 6, 8 and 10mm.
Tolerance of +0.000mm-
-0.040mm
Steel
100mm long
x 30mm I.D.
Quadrant
MU
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 10
SPECIAL
Metric Universal Block for general purpose checking as V1 block.
Tolerance of 0.1mm
Steel
20x50x150mm
TBR 2 125 (3)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 11
SPECIAL
Radiused test block for calibration of boiler probes. 3 off 1.5mm holes.
Tolerance of 0.004 inch
Steel
20x25x165mm
TBR 2 125 (5)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 12
SPECIAL
As TBR 2 125(3) - supplied with 5 off 1.5mm holes
Tolerance of 0.004 inch
Steel
20x25x165mm
A5 Blank Type B
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 13
ESI
Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.
ESI 98-7
Steel
50x75x305mm
A5 Blank Type C
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 14
ESI
Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.
ESI 98-7
Steel
50x75x305mm
ESI-BCB
N-A5
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 15
ESI
Checking twin crystal probes for sensitivity. Contains four additional 1.5mm diameter holes to A5 block.
ESI 98-2
Steel
50x75x305mm
50 RAD
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 16
ESI
Checking pulse shape of shear wave probes.
ESI 98-2 and
ESI 98-8
Steel
50x75x150mm
ASME
(Specify Thickness)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 17
ASME
Setting sensitivity levels for weld testing. Sizes and locations of flaws are dependent on weld thickness.
ASME Article 5 Fig T-546.1
Steel
Size dependent on weld thickness
ASME/M
(Specify Thickness)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 18
SPECIAL
(ASME)
Metric equivalent of ASME block.
Tolerance of 0.1mm
Steel
Size dependent on weld thickness
DAC
(Specify Thickness)
Ultrasonic Calibration Blocks Test Blocks UT Blocks Ultrasonic Calibration Blocks manufacturer 19
SPECIAL
Setting DAC characteristics for shear wave and compression wave probes. Flaws typically 1.5mm diameter holes at 20%, 40%, 60% and 80% of thickness.
Tolerance of 0.0004 inch
Steel
Size dependent on product thickness




 IIW V1, IIW V2, DAC, ASME, DC BLOCK, SC BLOCK, DSC BLOCK, 4 STEP BLOCK, 5 STEP BLOCK, MAB MINIATURE ANGLEBEAM BALIBRATION BLOCK, IOW BEAM PROFILE BLOCK, AWS RESOLUTION BLOCK, MINIATURE RESOLUTION BLOCK, 30 FBH RESOLUTION BLOCK, ASTM DISTANCE AREA AMPLITURE SET, ASTM SINGLE BLOCK, ULTRASONIC CALIBRATION BLOCKS, ULTRASONIC REFERENCE STANDARD, 2 NOTCH TUBE STANDARD, 2 NOTCH PIPE STANDARD, API REFERENCE STANDARD, LONGITUDINAL WAVE WEDGE, CERCUMFERENTIAL SHEAR WAVE WEDGE, EDDY CURRENT CALIBRATION STANDARD, MAGNETIC PARTICLE STANDARD, ASTM E709 MIL STD 271F, LIQUID PENETRANT STANDARD, IIW TYPE 1 BLOCK, IIW TYPE 2 BLOCK, ASTM E317, ASTM E1158, BASIC NOTCH SHAPES, HOLES, FLAT BOTTOM HOLE, ULTRASONIC TEST BLOCK,
