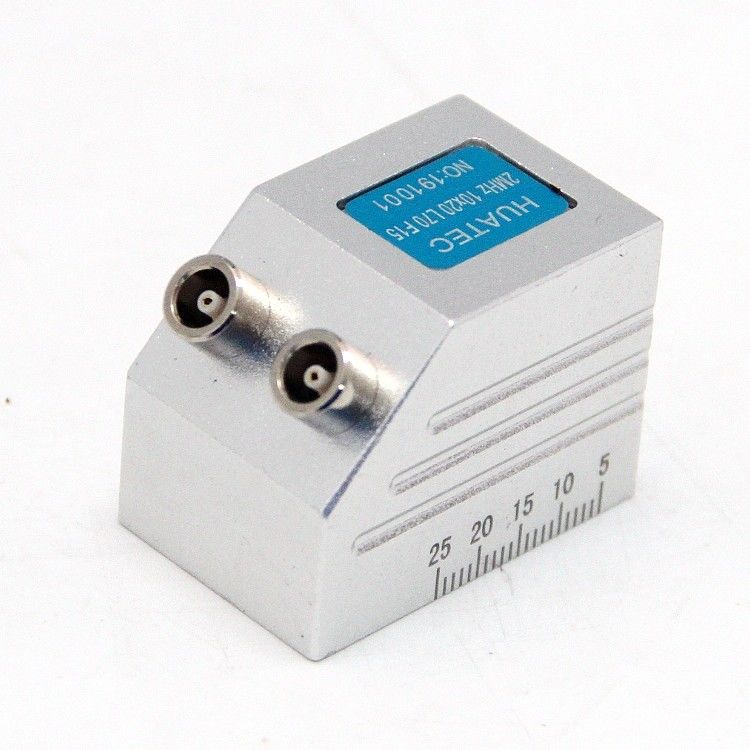

Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe

We offer all kinds of ultrasonic transducer as customer request with different element and composite material.

Ultrasonic Transducer
	Probe type Designation Angle Transducer element size [mm] Frequency [MHz] angle probe   HFD 9x8-2M-35 35° 8x9 2 MHz HFD 9x8-2M-45 45° 8x9 2 MHz HFD 9x8-2M-60 60° 8x9 2 MHz HFD 9x8-2M-70 70° 8x9 2 MHz HFD 9x8-2M-80 80° 8x9 2 MHz HFD 9x8-4M-35 35° 8x9 4 MHz HFD 9x8-4M-45 45° 8x9 4 MHz HFD 9x8-4M-60 60° 8x9 4 MHz HFD 9x8-4M-70 70° 8x9 4 MHz HFD 9x8-4M-80 80° 8x9 4 MHz     angle probe             HFD 22x20-2M-35 35° 20x22 2 MHz HFD 22x20-2M-45 45° 20x22 2 MHz HFD 22x20-2M-60 60° 20x22 2 MHz HFD 22x20-2M-70 70° 20x22 2 MHz HFD 22x20-2M-80 80° 20x22 2 MHz HFD 22x20-4M-35 35° 20x22 4 MHz HFD 22x20-4M-45 45° 20x22 4 MHz HFD 22x20-4M-60 60° 20x22 4 MHz HFD 22x20-4M-70 70° 20x22 4 MHz HFD 22x20-4M-80 80° 20x22 4 MHz   Probe type Designation Transducer element* diameter[mm]  Frequency[MHz] Standard straight probe   HFD 10-2M Ø 10 2 MHz HFD 10-4M Ø 10 4 MHz HFD 10-6M Ø 10 6 MHz HFD 20-2M Ø 20 2 MHz HFD 20-4M Ø 20 4 MHz HFD 20-6M Ø 20 6 MHz   Probe type Designation Transducer element* diameter[mm] Frequency[MHz] Dual straight probe             PQ 2/10-2M Ø 10 2 MHz PQ 2/10-4M Ø 10 4 MHz PQ 2/10-6M Ø 10 6 MHz PQ 2/20-2M Ø 20 2 MHz PQ 2/20-4M Ø 20 4 MHz PQ 2/20-6M Ø 20 6 MHz   Probe type Designation Angle Transducer element* diameter[mm] Frequency[MHz] Dual angle probe HFD 13x8-2M-60 60° 8x13 2 MHz HFD 13x8-2M-70 70° 8x13 2 MHz HFD 20x10-2M-60 60° 10x20 2 MHz HFD 20x10-2M-70 70° 10x20 2 MHz HFD 13x8-5M-60 60° 8x13 5 MHz HFD 13x8-5M-70 70°   8x13 5 MHz Note: 1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc. 2.We offer all kinds of probe with customer request. Testing Curve Report for a Transducers (optional by order)

Longitudinal Wave Probes (Straight Probe)

Transverse Wave Angle Beam Probes

Longitudinal Wave and Dual Crystal Angle Beam Probe

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD 8×13-2 2.5M10 means Element size: 8 × 13, Frequency: 2.5MHz, Focus: 10mm

Dual Crystal Straight Probe

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD2/12-2.5M10 means Element size: Ø12 Frequency: 2.5MHz Focus: 10mm

Short Approach Probe and Special Probe with Protective Membrane

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD7/9 5MHz F10 means Element size: 7×9 Frequency: 5MHz Focus: 10mm
