HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG6450-6

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                vibration analyzer, digital vibration meter


Accuracy:	+ 5% + 2 Digits	Acceleration:	0.1 To 100 M/s2 / 0.01 To 10 G / 10Hz~3kHz Peak
Velocity:	0.1 To 250 Mm/s / 0.01 To 15 Inch/s / 10Hz~1000Hz RMS	Displacement:	1 To 3000 µm / 0.03 To 120 Mil / 10 Hz~500Hz Peak-peak
Enveloped Acceleration:	0.1 To 25 Unit / 5Hz~2kHz Demodulated From 3kHz~10kHz	Temperature:	-33 To 220 OC / -27.4 To 428 OF
Battery:	1/2 AA, 3.6V, 20-29mA, >100 Hours Of Continuous Operation	Pickup:	Integrated Accelerometer With Extension Stinger And Magnet Base
Dimensions:	110x35x17 Mm	Weight:	100 G (Including Batter

Accuracy:	+ 5% + 2 Digits
Acceleration:	0.1 To 100 M/s2 / 0.01 To 10 G / 10Hz~3kHz Peak
Velocity:	0.1 To 250 Mm/s / 0.01 To 15 Inch/s / 10Hz~1000Hz RMS
Displacement:	1 To 3000 µm / 0.03 To 120 Mil / 10 Hz~500Hz Peak-peak
Enveloped Acceleration:	0.1 To 25 Unit / 5Hz~2kHz Demodulated From 3kHz~10kHz
Temperature:	-33 To 220 OC / -27.4 To 428 OF
Battery:	1/2 AA, 3.6V, 20-29mA, >100 Hours Of Continuous Operation
Pickup:	Integrated Accelerometer With Extension Stinger And Magnet Base
Dimensions:	110x35x17 Mm
Weight:	100 G (Including Batter

Product Description

HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816

Specifications:
Accuracy + 5% + 2 digits
Measurement Range & Frequency response:
Acceleration: 0.1 to 100 m/s2 / 0.01 to 10 g / 10Hz~3kHz peak
Velocity:0.1 to 250 mm/s / 0.01 to 15 inch/s / 10Hz~1000Hz RMS
Displacement: 1 to 3000 µm / 0.03 to 120 mil / 10 Hz~500Hz peak-peak
Enveloped Acceleration: 0.1 to 25 unit / 5Hz~2kHz demodulated from 3kHz~10kHz
Temperature:-33 to 220 oC / -27.4 to 428 oF
Battery: 1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.
Pickup: Integrated accelerometer with extension stinger and magnet base
Dimensions: 110x35x17 mm; Weight: 100 g (Including battery)

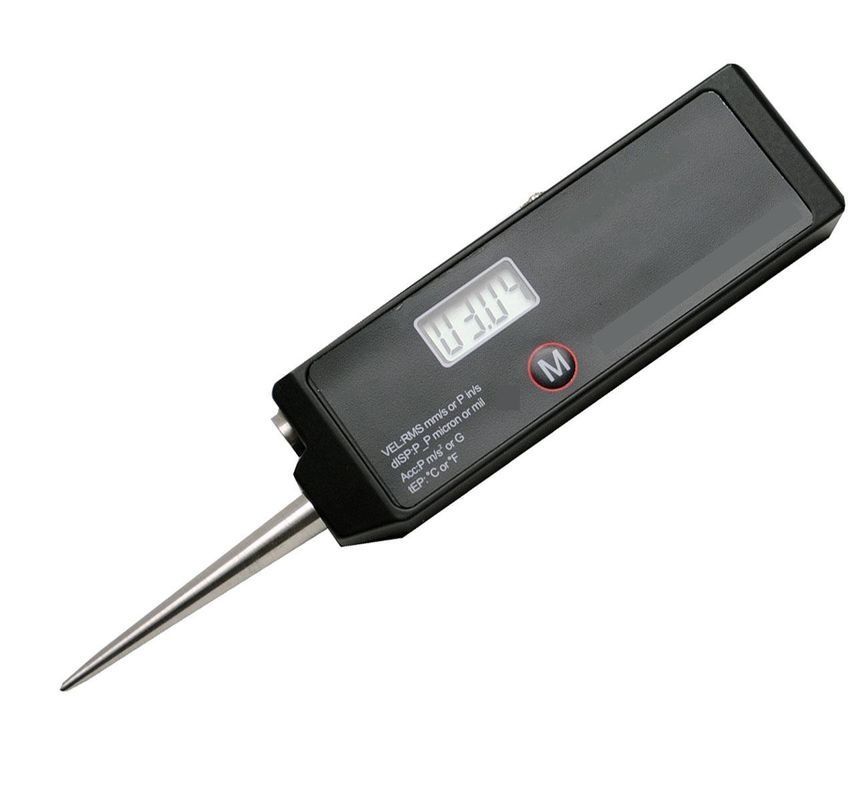

HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816 0

Features:
Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measuring
One button control power, parameter selection, ISO10816 group selection, measurement and holding.
With remote switch and magnet base to avoid handheld problem to get reliable and consistent data.
Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator
Build-in ISO10816-2 & -3 groups selectable
With magnet base and remote switch
Sensor included, Easy to use.
Automatic power off. 4 digital LCD display
Metal case, Robust, Reliable
Both Metric & English Unit selectable

HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816 1

HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816 2

HUATEC HG6450-6 Multi-Parameter Machine Condition Checker Vibration Meter ISO10816 4
