Portable Ultrasonic Thickness Gauge Spheroidization Rate Tester High Precision Timing

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: TG-1000C

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                portable ultrasonic thickness gauge, through coating thickness gauge


Model:	TG-1000C	Display:	FSTN LCD Display With Backlight
Power Supply:	3.7V Li-Ion Chargeable Battery	Measuring Range:	0.50mm To 508mm(0.02" To 20.00")
Size:	157mm78mm37mm	Weight:	250g
Probe Calibration:	Real-time Temperature Compensation Technic Supporting One-time Probe Calibration For Long Term Usage	Gain:	16 Stages Gain Adjustable
Memory:	1000 Datas	Sould Velocity:	1 ~ 19999 M/s
Printer:	Optional Portable Bluetooth Thermal Printers

Model:	TG-1000C
Display:	FSTN LCD Display With Backlight
Power Supply:	3.7V Li-Ion Chargeable Battery
Measuring Range:	0.50mm To 508mm(0.02" To 20.00")
Size:	157mm78mm37mm
Weight:	250g
Probe Calibration:	Real-time Temperature Compensation Technic Supporting One-time Probe Calibration For Long Term Usage
Gain:	16 Stages Gain Adjustable
Memory:	1000 Datas
Sould Velocity:	1 ~ 19999 M/s
Printer:	Optional Portable Bluetooth Thermal Printers

Product Description

Portable Ultrasonic Online Velocity Gauge Spheroidization rate tester

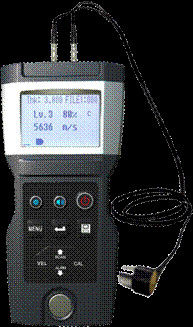

TG-1000C Online Ultrasonic Velocity Gauge

TG-1000C is a portable online measurement & command control ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.

Features:

High precision timing chip & V-Path model used for precision measurement
Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
Velocity can be directly measured and used in evaluation of spheroidization rate
Bluetooth & Mini-USB interface for printing & communication, host software upgradable

Main Functions:

Scan mode, min/max capture mode, and alarm mode support
Thickness can be measured by a known velocity
16 stages gain adjustable
Storage capacity of 1000 measurements with velocity, thickness, time, etc.
Communicate with PC or smart phones, support online measurement & command control

Technical Parameters

Sound Velocity Range	1 ~ 19999 m/s	Thickness Range	See Probe Parameters
Resolution	1m/s, 0.001mm / 0.0001inches	Accuracy	See Probe Parameters
Measuring Period	4 times per second	Probe Frequency	2MHz,3MHz,5MHz,7.5MHz
Calibration Mode	Probe Calibration, Real-time Temperature Compensation	Data Storage	1000 measurements, including thickness, sound velocity, time, etc.
Calibration block	4.000mm(Steel)	Gain Adjustable	16 Stages
Measuring Mode	scan, min/max capture, alarm	Thickness measure	Support
Display	English FSTN LCD Display with backlight	Display Content	Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc.
Communication	Bluetooth & Mini-USB interface, virtual serial port protocol	Print	Optional portable Bluetooth thermal printers
Power Supply	3.7V Li-Ion chargeable battery	Power off	Timeout power off, low battery power off
Usage Temperature	-10 ~ 50 °C	Storage Temperature	-30 ~ 60 °C
Size	157mm78mm37mm	Weight	About 260g
Shell Material	ABS & PC alloy	Box Material	ABS (IK08 / IP67)

Probe parameters

Label	5M Φ10	5M PT-08	7.5M PT-06	2M ZT-12	3M GT-12
Measure Range (Steel)	0.75~300 mm	0.8~225 mm	0.8~50 mm	3.0~400 mm	2.0~200 mm
Min. Measure Diameter	Ø25 x 3 mm	Ø20 x 1.2 mm	Ø15 x 1.2 mm	Ø30 x 4 mm	Ø25 x 3 mm
Probe Diameter	13mm	11mm	9mm	17mm	15mm
Probe Frequency	5MHz	5MHz	7.5MHz	2MHz	3MHz
Contact Temperature	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~310°C

Version Comparison

Version	Online measurement	Command control
TG-1000	x	x
TG-1000C	√	√
