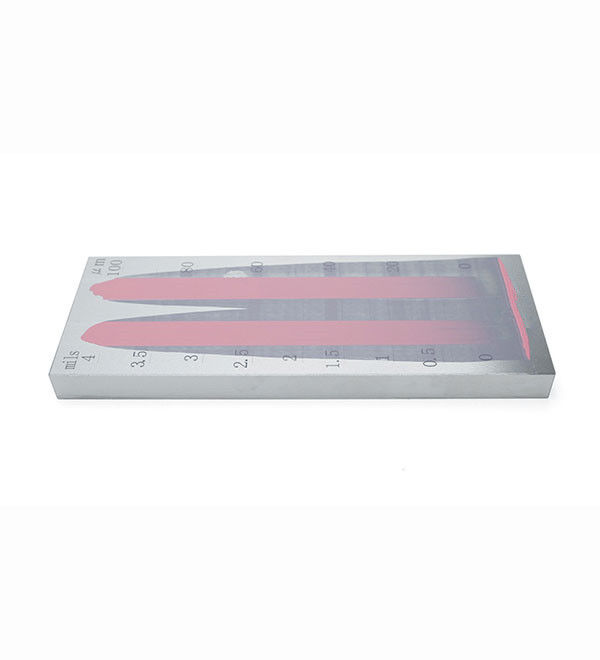

Stainless steel Material Fineness of Grind Gauge For Paint , plastic , pigment

Brand Name: HUATEC
Model Number: HT1903
MOQ: 1pcs
Packaging Details: Standard export package
Payment Terms: T/T, Paypal, Western Union
Detail Information
Product Description
ratings& Reviews
Detail Information
Place of Origin:
Beijing
Certification:
ISO, CE, GOST
Supply Ability:
500pcs per month
Highlight:

oating thickness tester

,

coating thickness meter

Product Description

Product Introduction: Fineness of Grind Gauge is manufactured according to the GB/T1724, ISO1524 standard.

Introduction:
Fineness of Grind Gauge is manufactured according to the GB/T1724, ISO1524 standard.

Application:
Paint, plastic, pigment, printing ink, paper, ceramic, pharmaceutical, food and many other industries.

Technical Specification:
Material: Stainless steel

Order Information:

Item Order No. Effective Groove Size
(L×W) (mm)		 Measurement
Range(μm)		 Dimension
(mm)		 Division
Value		 Unit Number of
Grooves
Single-
Channel
Grind
Gauge		 1903/25 140×12.5 0-25 175×65×13 2.5 μm 1
1903/50 140×12.5 0-50 175×65×13 5 μm 1
1903/100 140×12.5 0-100 175×65×13 10 μm 1
Double-
Channel
Grind
Gauge		 1908/25 140×12.5 0-25 175×65×13 2.5 H &μm 2
1908/50 140×12.5 0-50 175×65×13 5 H &μm 2
1908/100 140×12.5 0-100 175×65×13 10 H &μm 2
Wide
Single
Channel
Grind Gauge		 1906/25 140×37 0-25 175×65×13 2.5 H &μm 1
1906/50 140×37 0-50 175×65×13 5 H &μm 1
1906/100 140×37 0-100 175×65×13 10 H &μm 1
Triple-
Channel
Grind Gauge		 1905 140×12.5 0-25/50/100 175×85×13 2.5/5/10 μm 3









Stainless steel Material Fineness of Grind Gauge For Paint , plastic , pigment 0

                          1903
               Single-Channel Grind Gauge

Stainless steel Material Fineness of Grind Gauge For Paint , plastic , pigment 1

                         1906

                      Wide Single Channel Grind Gauge

Stainless steel Material Fineness of Grind Gauge For Paint , plastic , pigment 2

                        1905

                       Triple-Channel Grind Gauge

Order Information of Accessories
1907 Scraper For Fineness of Grind Gauge
