Home > products > Vibration Meter > ISO Standard ABS Vibration Meter 10Hz - 10KHz With Data Output Metric / Imperial

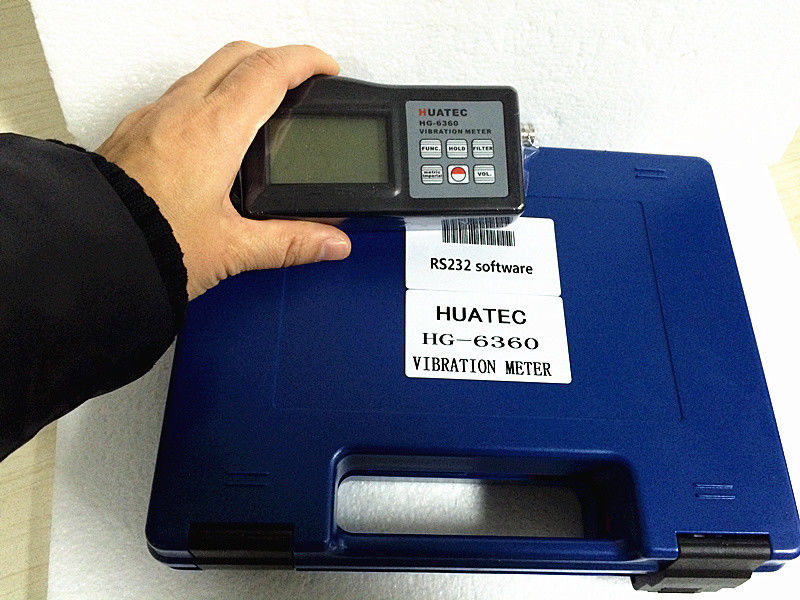

ISO Standard ABS Vibration Meter 10Hz - 10KHz With Data Output Metric / Imperial

Name: ISO Standard ABS Vibration Meter 10Hz - 10KHz With Data Output Metric / Imperial
Brand: HUATEC GROUP CORPORATION
SKU: HG6360
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG6360

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                vibration analyzer, digital vibration meter


Material:	ABS	Data Output:	USB
Bluttooth:	10m Or 100meters	Acceleration:	10Hz To 10KHz 0.1-200m/s
Velocity:	10Hz To 1KHz 0.1-400mm/s	Displacement:	10Hz To 1KHz 0.001-4.0mm

Material:	ABS
Data Output:	USB
Bluttooth:	10m Or 100meters
Acceleration:	10Hz To 10KHz 0.1-200m/s
Velocity:	10Hz To 1KHz 0.1-400mm/s
Displacement:	10Hz To 1KHz 0.001-4.0mm

Product Description

ISO2954 Multi-function Vibration Meter 10Hz - 10KHz With with data output Metric/imperial HG6360

Model: HG 6360

Specifications:

Acceleration 10Hz to 10KHz 0.1-200m/s

Velocity 10Hz to 1KHz 0.1-400mm/s

Displacement 10Hz to 1KHz 0.001-4.0mm

Accuracy:＜5﹪

Auto power off

RPM (revolution): 5-100000r/min

Frequency: 10Hz to 10KHz

Metric/imperial conversion

With RS232C interface

Max hold

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Power supply: 4x1.5V AAA (UM-4) battery

Battery indicator: low battery indicator

Dimensions: 124x62x30mm

Weight: 120g(not including battery)

Standard Accessories	Main Unit
	Piezoelectric Transducer
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)
	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C/USB data Cable with Software
	Bluetooth Data Adapter with Software

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8
