Product Description

Aluminum alloy pocket lamp type LED Ultraviolet Lamp 365nm Ultraviolet band IEC 60529



1· Introduction

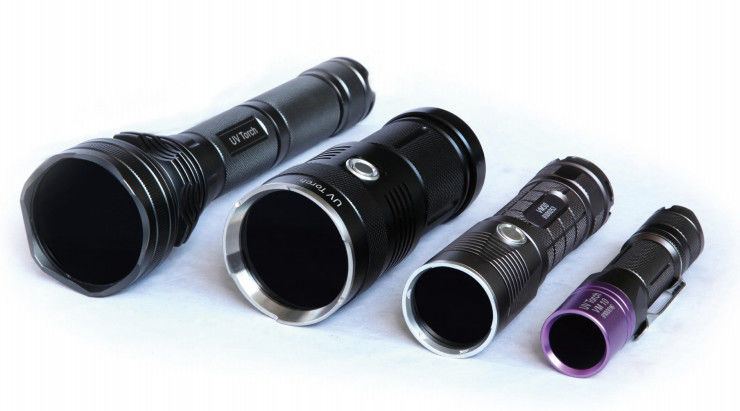

DG Series pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

2. Main Application

  1. Fluorescence Penetrant Testing
  2. Fluorescence Magnetic Particle Flaw Detection
  3. Fluorescence Leak Detection

Other Application

  1. Oil Stain, Blot Testing
  2. Special Gas, Oil and Gas Pipeline Testing
  3. Fluorescence Reflection Detection for Special Materials
  4. Criminal Investigation and Legal Medical Expert Survey
  5. Paper Money Authentication, Jewel Appreciation
  6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

3. Characteristic and Performance

  1. HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element,spectrum is pure.

  1. The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.
  2. Quick Start, can reach the maximum illuminance as soon as switch on.
  3. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
  4. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
  5. Optical filter is black vitaglass.
  6. High strength aviation aluminum alloy shell with anodize surface.
  7. Enhance thermal design, can be used continuous for long time.
  8. Configure dedicated high speed charger for each lamp.
  9. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
  10. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

4. Technical Parameters



Mode

Parameters




 DG-10 DG-30 DG-50 DG-70
Lamp Beads NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount 1 3
Input Voltage 3.7-4.2V 3.7-4.2V 3.7-8.4V 3.7-4.2V
Output Power 3W 9W
Intensity of Ultraviolet Ray at 38cm Distance

≥10000

uW/cm2

≥13000

uW/cm2

≥20000

uW/cm2

≥20000

uW/cm2
Irradiated Area at 38cm Distance ￠70mm ￠45mm ￠55mm ￠80mm
Diameter of Light Inlet Window ￠22 ￠34 ￠55 ￠50
Battery Model ICR 18650 ICR 26650 ICR 26650 ICR 18650
Battery Capacity 2600mAh 4800mAh 4800mAh 2600mAh
Number of Battery 1 1 2 4
Charging Time ≥5H ≥6H ≥7H ≥5H
Working Hours ≥4H ≥5H ≥8H ≥5H
Battery Life More than 500 time for fully charge and discharge
Outline Dimension A ￠28 mm ￠40 mm ￠62 mm ￠60 mm
B ￠24 mm ￠33 mm ￠34 mm ￠50 mm
L 128 mm 144 mm 240 mm 143 mm
Weight(including Battery) 140g 240g 520g 610g



50 / 60Hz Magnetic Particle Testing Pocket LED Ultraviolet Lamp 20000 Hours Lifetime 0



Diagram of Outline Dimension

5. Configuration List



  DG-10 DG-30 DG-50 DG-70
Main Device 1 1 1 1
Battery 1 1 2 4
Charger 1 1 1 1
Suit case 1 1 1 1
Operating Manual 1 1 1 1
Certification 1 1 1 1
Warranty Card 1 1 1 1
Packing List 1 1 1 1



Optional Configuration

  DG-10 DG-30 DG-50 DG-70
Protective Glass 1 1 1 1
Triangle Holder   1





50 / 60Hz Magnetic Particle Testing Pocket LED Ultraviolet Lamp 20000 Hours Lifetime 1
